Clinching Press (Compact Type 8-Ton HVAC Duct Clinching)
- Pressing Force 78kN/156kN
- Throat Depth 500mm
- Daylight 45mm

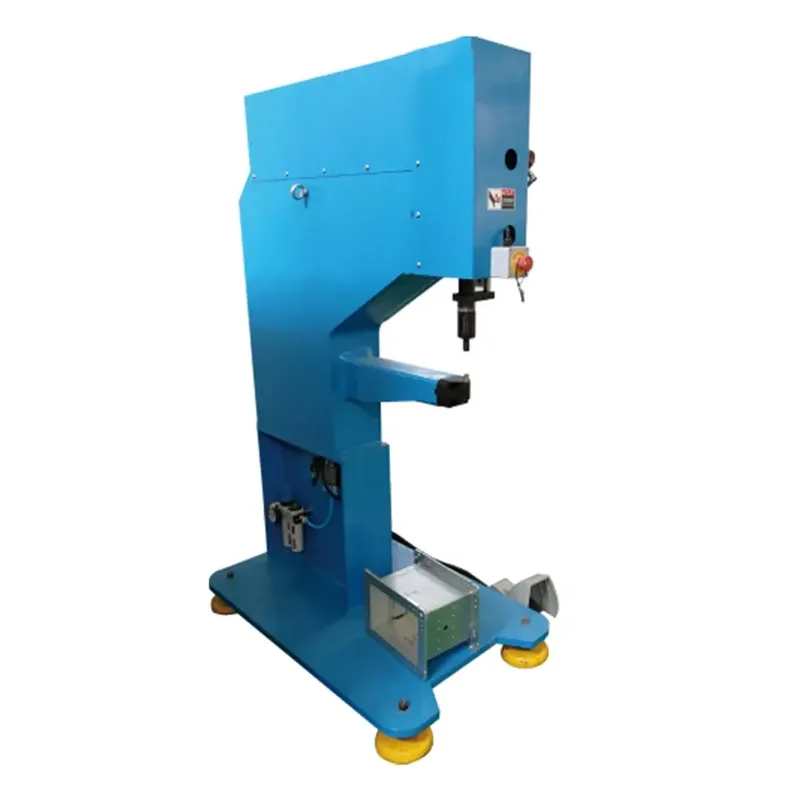

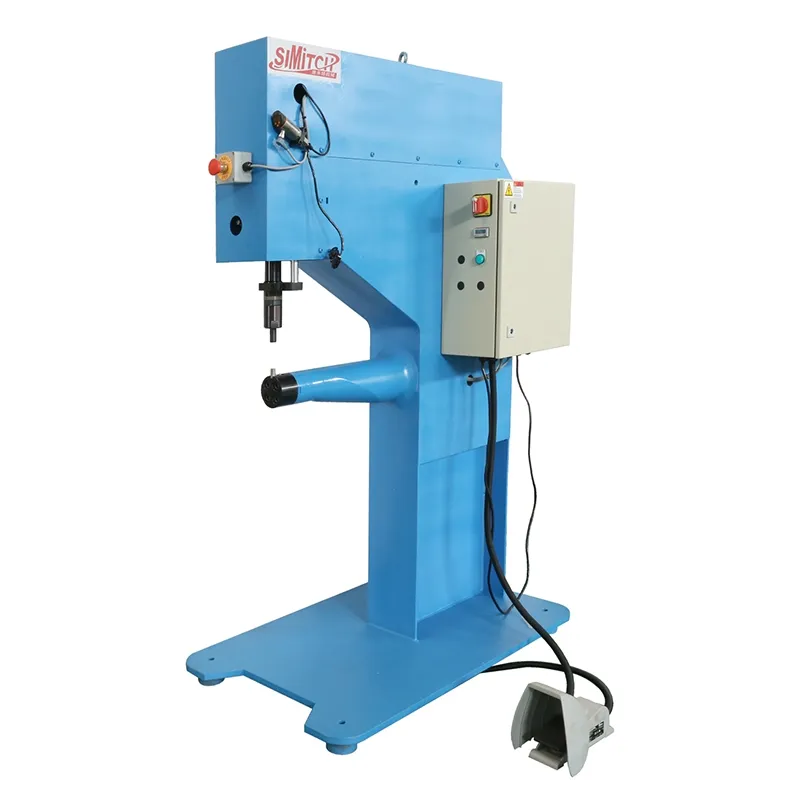

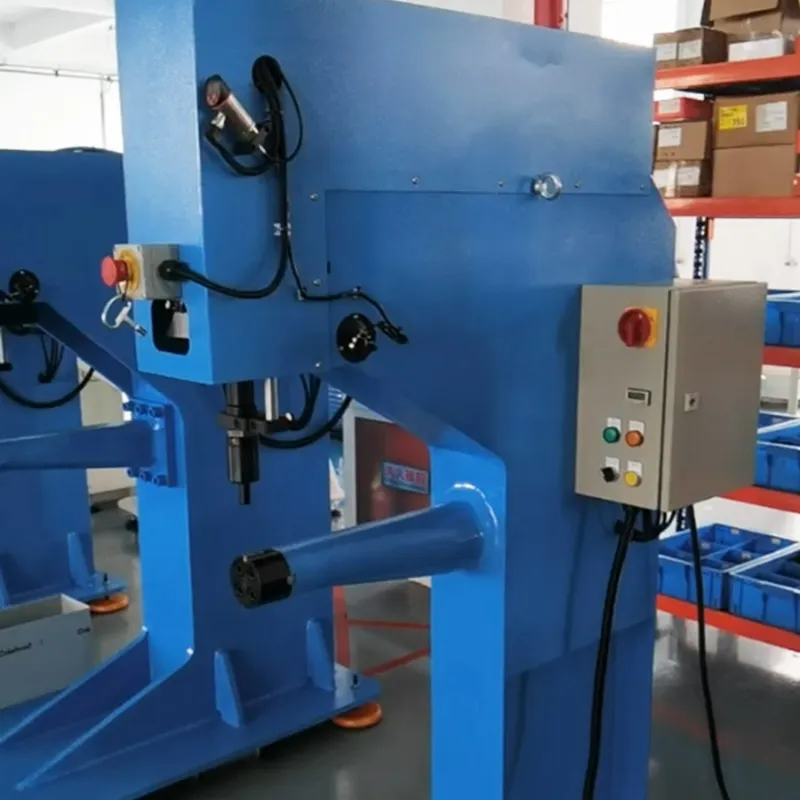

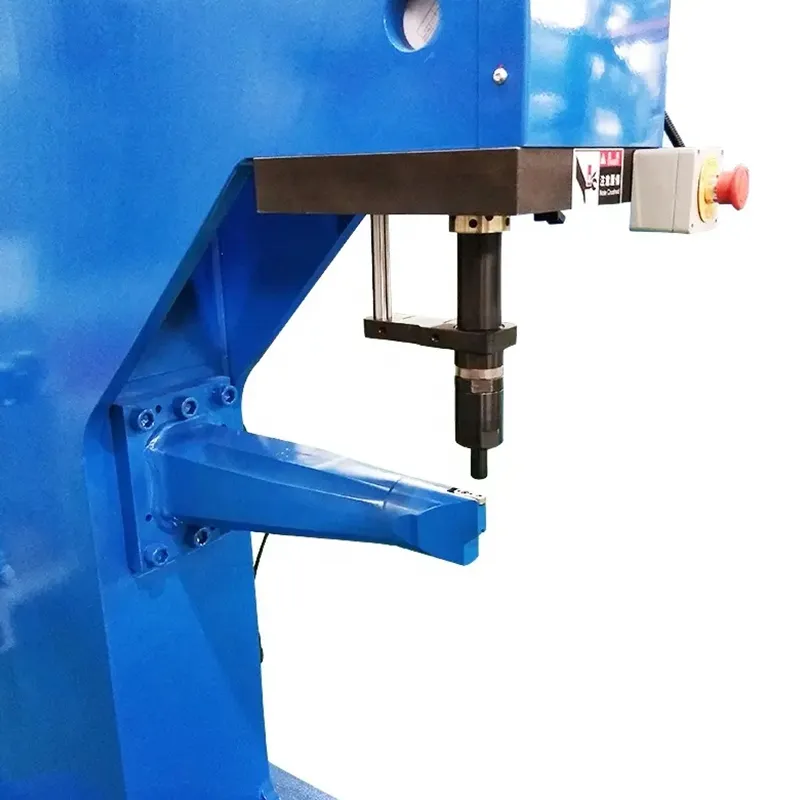

The LTC clinching press features an integrated cylinder design specifically engineered for ductwork and sheet metal joining. Compared to the TCEU series, the LTC model offers a deeper throat and a slimmer clinching arm with a minimum diameter of only 85mm. Its reduced overall machine height makes it an ideal "space-friendly" solution for workshops with height constraints or specialized assembly layouts. Customization options are available to meet unique production requirements.

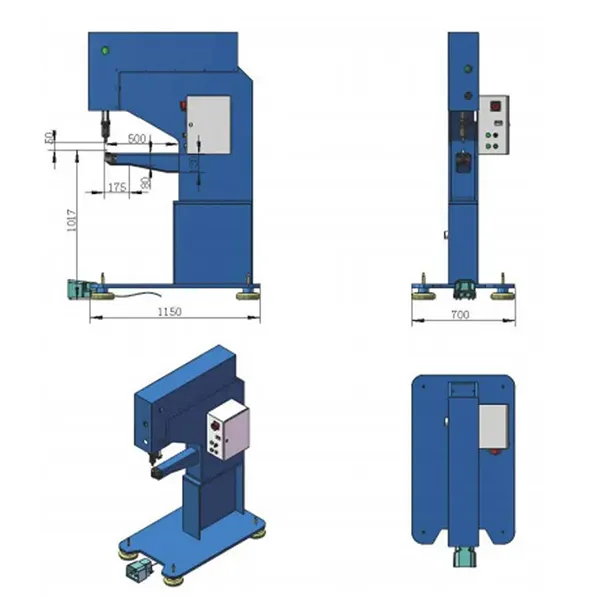

Dimensions
| Model | Max. Capacity | Throat Depth (mm) | Daylight (mm) | ||
| kN | T | ||||
| LTC08-01 | 8 | 78 | 7.8 | 500 | 45 |
Applicable Processes
Forming
Testing
Stamping
Embossing
Drawing
Sealing
Riveting
Cutting
Bending
Compression
Clinching
Press fitting
Product Applications

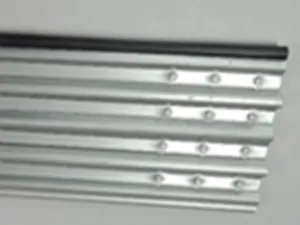

Damper Blade Clinching

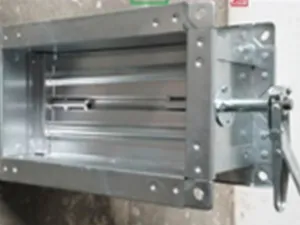

Fire Damper Assembly
Air Damper/Volume Control Damper (VCD) Assembly

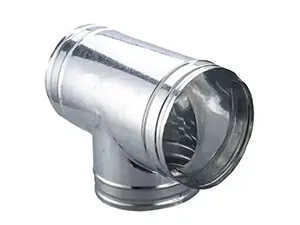

Duct Seam Joining/Ductwork Clinching
