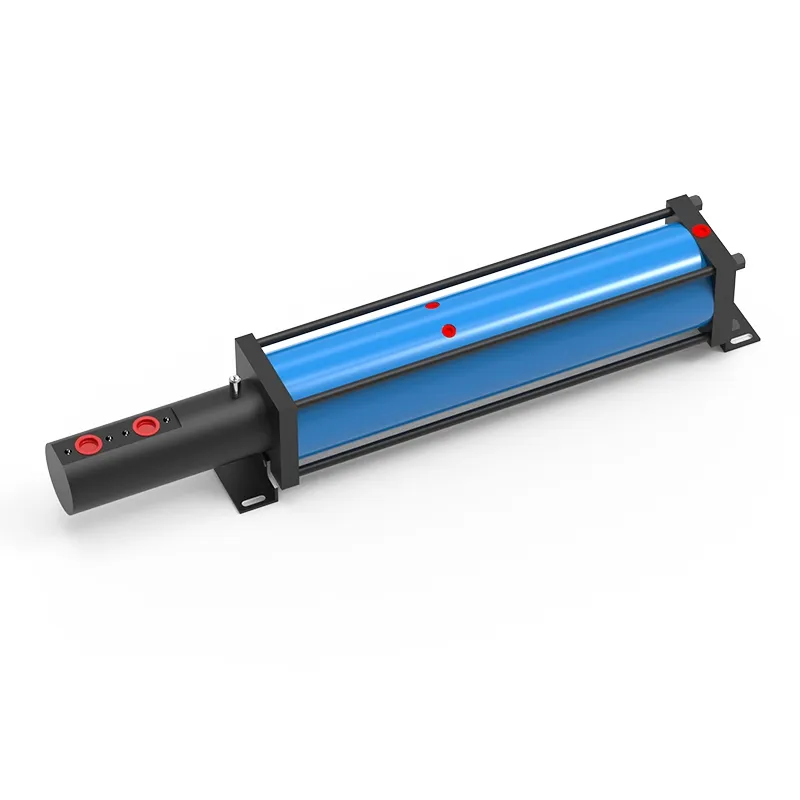

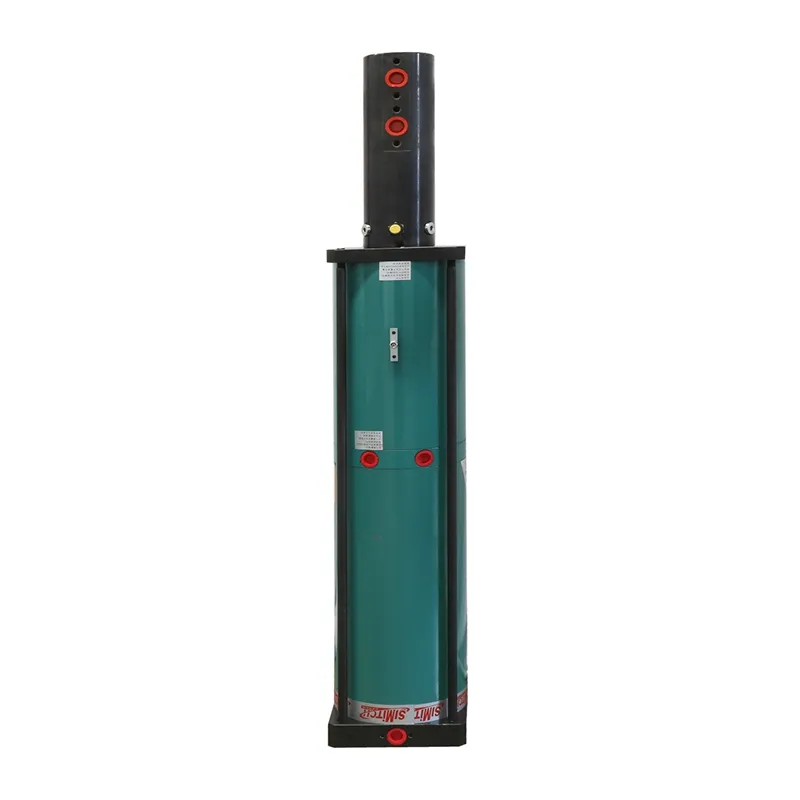

Pneumohydraulic Intensifier, MPS/HMPS Series
  • Pneumohydraulic Intensifier, MPS/HMPS Series
  • Pneumohydraulic Intensifier, MPS/HMPS Series
  • Pneumohydraulic Intensifier, MPS/HMPS Series

    • Pneumohydraulic Intensifier, MPS/HMPS Series

    • Pressing force 2-2000kN
    • Force stroke 6-52mm
    • Total stroke 100/200mm

    The MPS/HMPS pneumohydraulic intensifier is a high-pressure output device that integrates pneumatic and hydraulic technologies. By utilizing compressed air to drive piston motion and applying Pascal’s Law, it converts input air pressure into hydraulic pressure dozens of times higher. Its core components include the cylinder, oil cylinder, and air-oil conversion barrel, supporting 360-degree mounting without the need for an additional hydraulic unit.

    Leave a Message
    • MPS Intensifier
      Pressure Ratio: 69:1
      Converts 6 bar input air pressure into 400 bar hydraulic output.
      Specifically designed to drive AT Series working cylinders.
    • HMPS intensifier
      Pressure Ratio: 39:1
      Converts 6 bar input air pressure into 230 bar (up to 250 bar) hydraulic output.
      Specifically designed to drive HZ Series working cylinders.
    Operating Parameters

    MPS Operating Parameters

    Model Approach Stroke Force (kg, at 6 bar air pressure) Return Stroke Force (kg, at 6 bar air pressure) High-pressure output at A1 under intensification (CC) A1 H B L1 L Pneumatic interface Hydraulic interface
    MPS100.60.30 400 470 30 112 85 625 281 681 G1/2 G3/4
    MPS125.60.50 400 790 50 137 98.5 612 256 668 G1/2 G3/4
    MPS160.60.100 400 1800 100 177 118.5 720 298 776 G3/4 G3/4
    MPS200.60.180 400 2800 180 216 138 836 386 892 G1 G3/4
    MPS250.60.265 400 6600 265 268 159 921 361 977 G1 G1
    MPS300.60.390 400 10000 390 332 196 1125 450 1200 G1 G1-1/4

    HMPS Operating Parameters

    Model Approach Stroke Force (kg, at 10 bar air pressure) Return Stroke Force (kg, at 6 bar air pressure) High-pressure output under intensification (CC) A1 H B L1 L Pneumatic interface Hydraulic interface Remarks
    HMPS100.100.50 400 470 50 112 85 625 281 681 G1/2 G3/4 230
    HMPS125.100.78 400 790 78 137 98.5 612 256 668 G1/2 G3/4 230
    HMPS160.100.134 400 1800 134 177 118.5 720 298 776 G3/4 G3/4 230
    HMPS200.100.284 400 2800 284 216 138 836 386 892 G1 G3/4 230
    HMPS250.100.395 400 6600 395 268 159 921 361 977 G1 G1 230
    HMPS300.100.650 400 10000 650 332 196 1125 450 1200 G1 G1-1/4 230

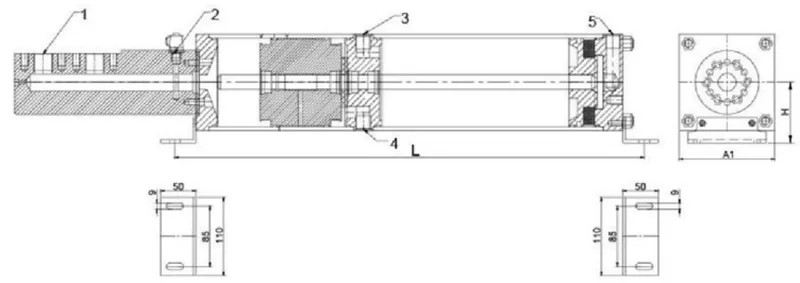

    Dimensions
    • High-pressure hydraulic port
    • Pressure test port
    • Fast advance port
    • Boost return port
    • Boost port

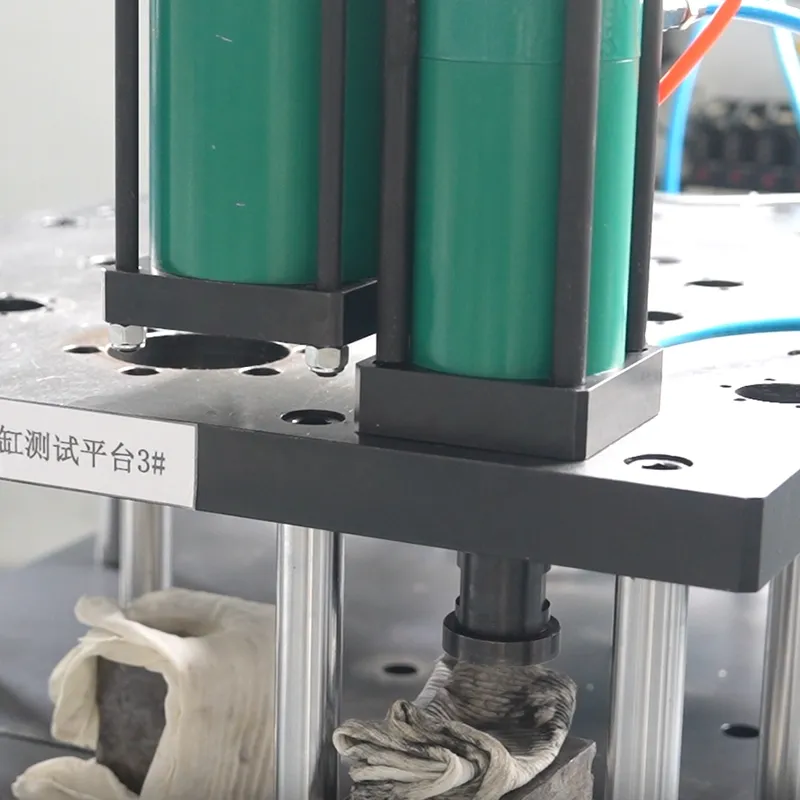

    Applicable Processes
    • FormingForming
    • TestingTesting
    • StampingStamping
    • EmbossingEmbossing
    • DrawingDrawing
    • SealingSealing
    • RivetingRiveting
    • CuttingCutting
    • BendingBending
    • CompressionCompression
    • ClinchingClinching
    • Press fittingPress fitting
    Pneumohydraulic Drives

    Each cycle outputs the same pressure, reducing batch-to-batch differences and ensuring consistent quality.

    Pressure and stroke adjustments are intuitive, requiring no complex setup when switching products, making the system ideal for flexible production needs.
