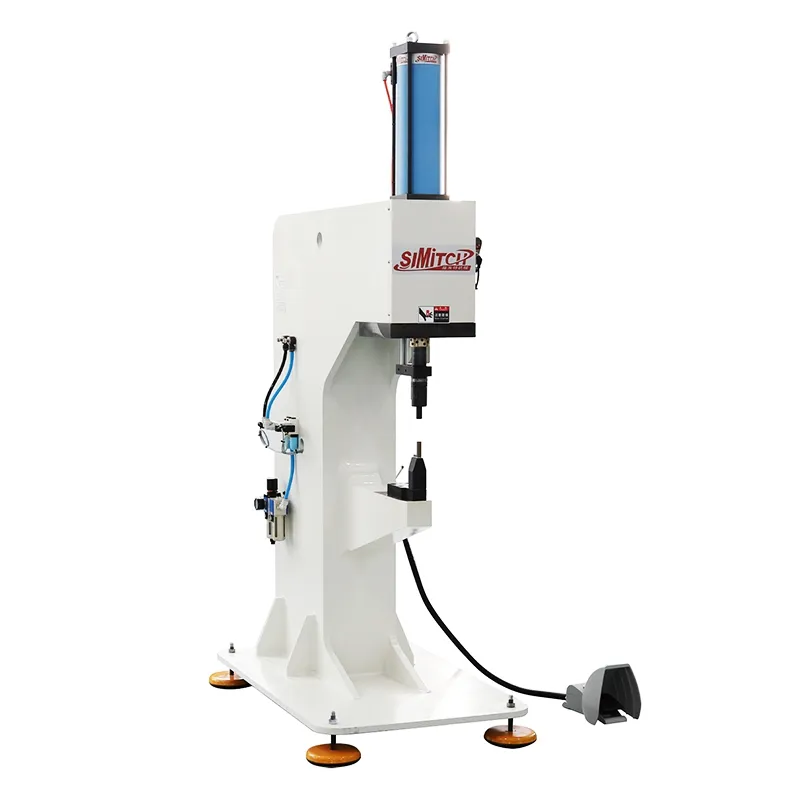

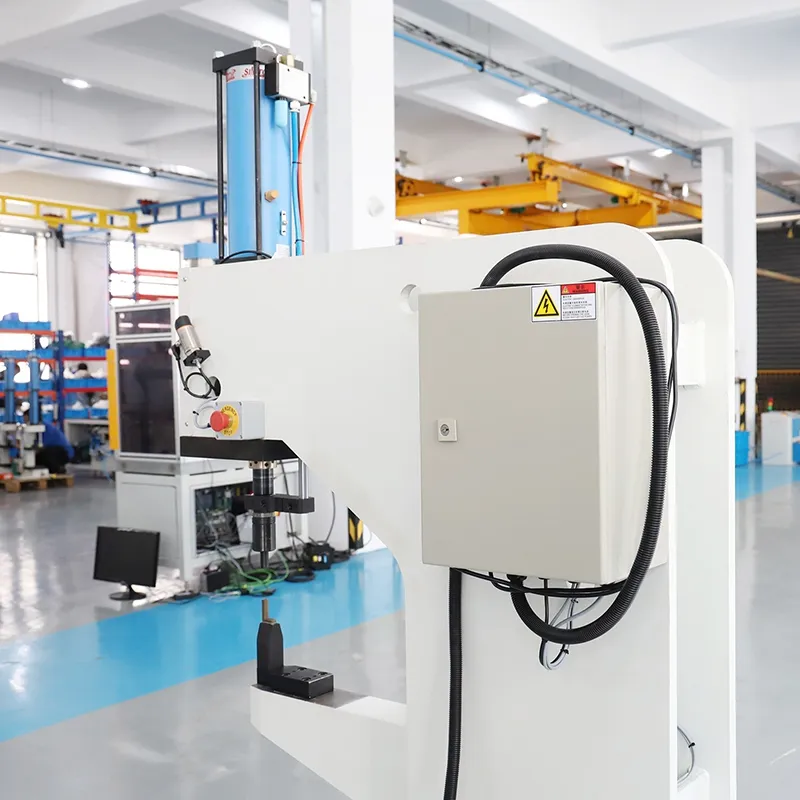

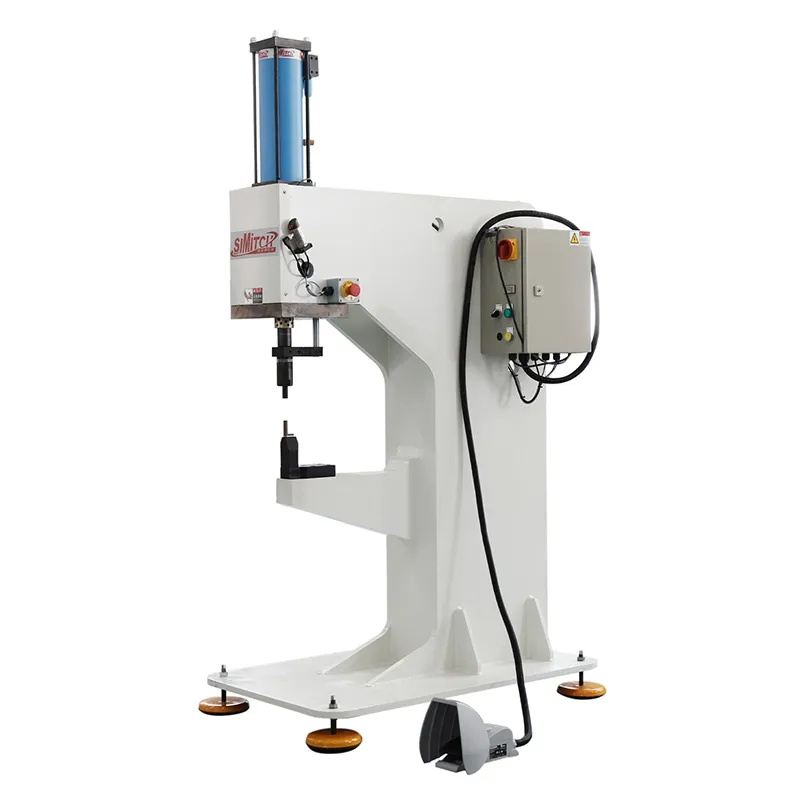

Clinching Press (8/15-Ton C-Frame Floor Press)
- Pressing Force 78kN/156kN
- Throat Depth 500mm
- Daylight 45mm
The versatile CEU Series C-frame press is engineered for high-precision press-fitting and clinching applications across a wide range of industries, including automotive, home appliances, HVAC, sheet metal, electrical, elevators, and furniture hardware. Featuring a stable, monoblock cast iron design with an extra-deep 500mm throat, this series provides the rigidity required for long-stroke precision assembly.

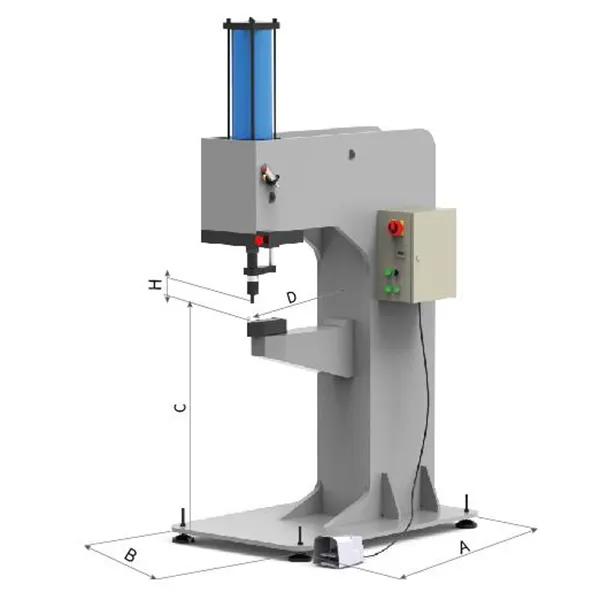

Dimensions
| Model | Max. Capacity | A | B | C | D | E | ||
| kN | T | |||||||
| CEU | 8 | 78 | 7.8 | 935 | 700 | 1100 | 500 | 60 |
| CEU | 15 | 134 | 13.4 | 1045 | 800 | 1100 | 500 | 60 |
System Configuration

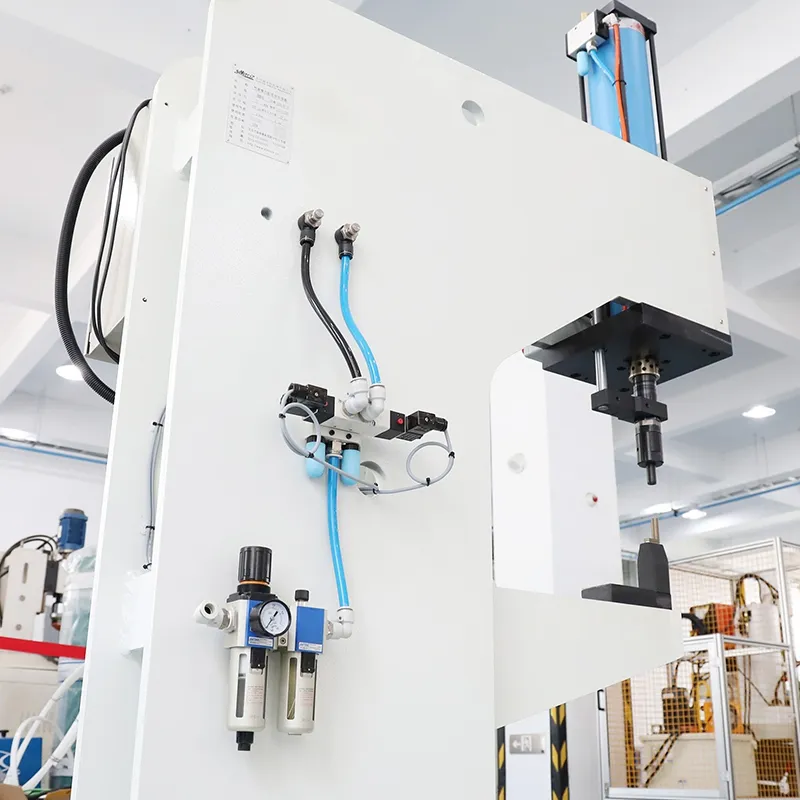

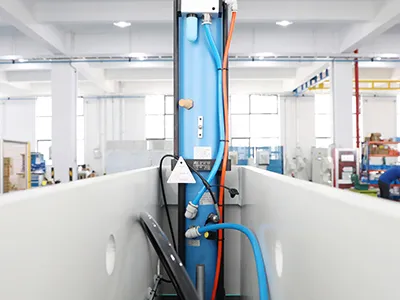

Pneumohydraulic Cylinder

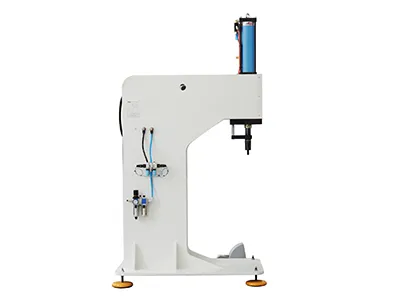

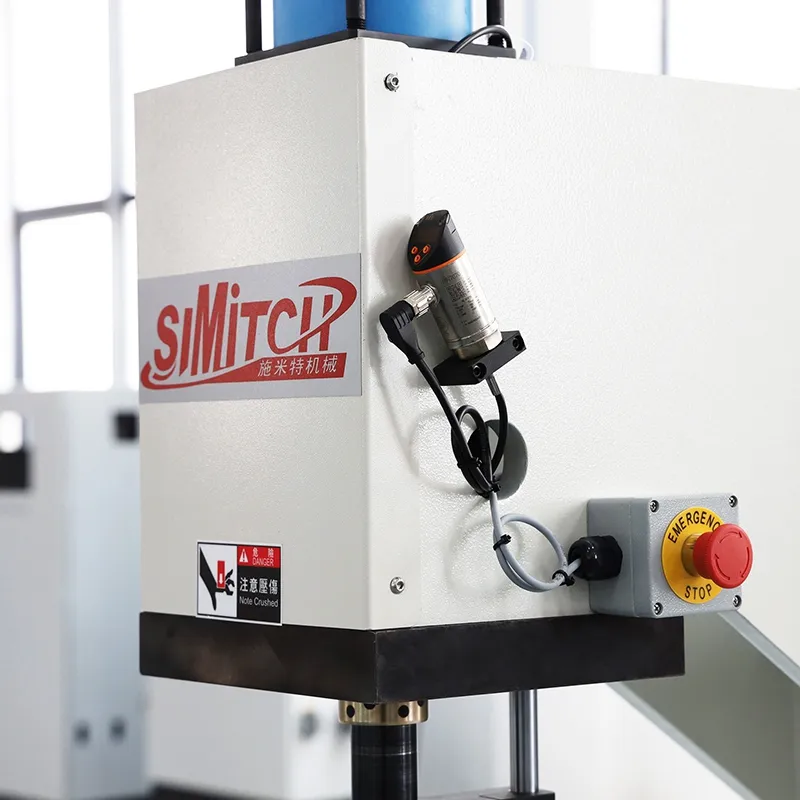

CEU C-Frame Press Body

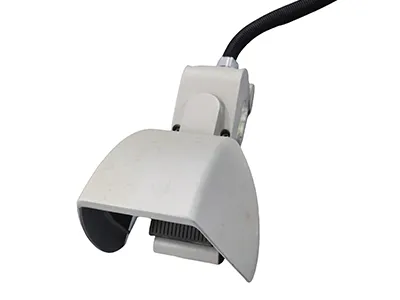

STE Safety Control System
Key Advantages
- Simplified Power Drive: Utilizes an advanced pneumohydraulic cylinder as the primary power actuator.
- Generates 2kN-2000kN of pressing force using only 2-8 bar compressed air, eliminating the need for complex hydraulic power units.
- Pressing force is infinitely adjustable within the specified range.
- Unique "Adaptive" Pressing Technology: The power stroke is automatically triggered at any point within the total stroke upon contact with the workpiece.
- No stroke adjustment is required when changing tools or workpieces. During the power stroke, the force automatically adapts to load changes, optimizing the assembly process.
Applicable Processes
Forming
Testing
Stamping
Embossing
Drawing
Sealing
Riveting
Cutting
Bending
Compression
Clinching
Press fitting
