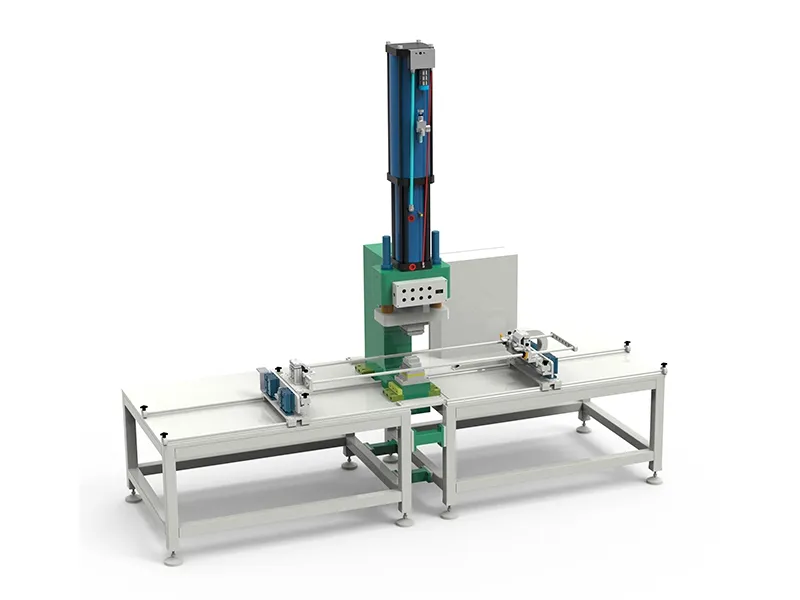

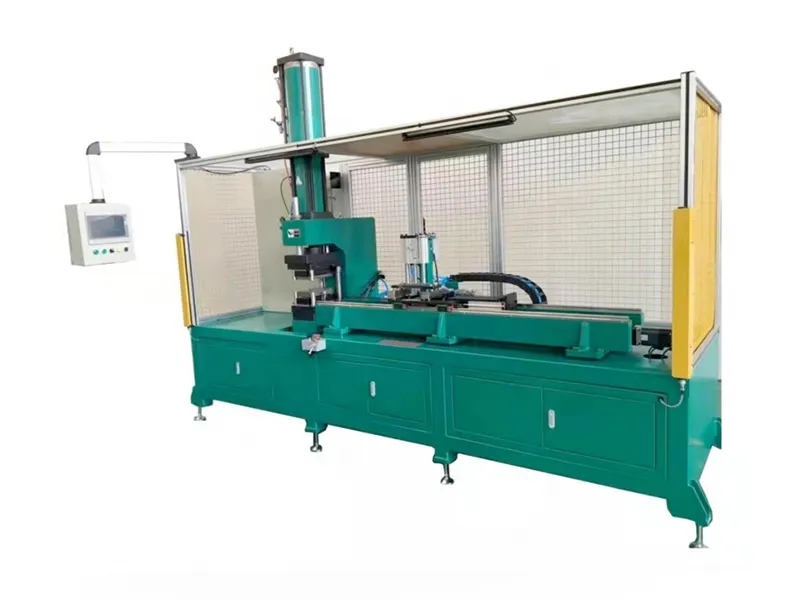

Clinching Machine (HVAC Damper Blade Clinching)
- Pressing Force 2-200kN
- Throat Depth 250-400mm
The damper blade clinching machine is a specialized automated or semi-automated equipment designed to securely and precisely join damper blades (for volume control dampers, fire dampers, etc.) with linkage rods or shafts. As a core component of modern damper production lines, it serves as a high-efficiency alternative to traditional manual riveting or welding processes.
System Configuration
- Drive System: Pneumohydraulic cylinder.
- Frame&Workbench: Robust steel structure providing a stable foundation for the equipment.
- Feeding System: Automatically delivers rivets to the designated riveting position.
- Positioning&Clamping: High-precision fixtures ensure the blades and linkage rods remain accurately aligned without shifting during the clinching process.
- Control System: Typically equipped with a PLC and a touch-screen HMI (Human-Machine Interface).
