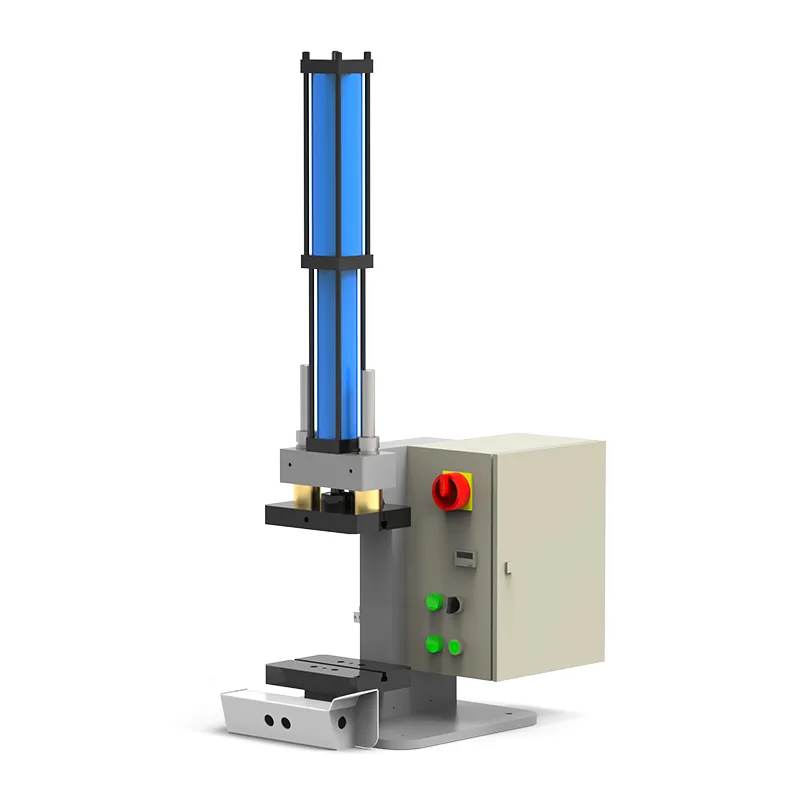

Clinching Press (4-Ton C-Frame Bench Press)
- Clamping Force 38kN
- Force Stroke 5-52mm
- Daylight 200mm
The CEB series clinching bench press clinching equipment is widely used in industrial fields requiring precision press-fitting and clinching. It serves multiple industries including automotive, home appliances, HVAC, sheet metal, electrical, elevators, and furniture hardware. Its highly adaptable design allows it to function as a stationary bench-top press, a portable clinching unit, or as a standalone cell within a fully automated production line.

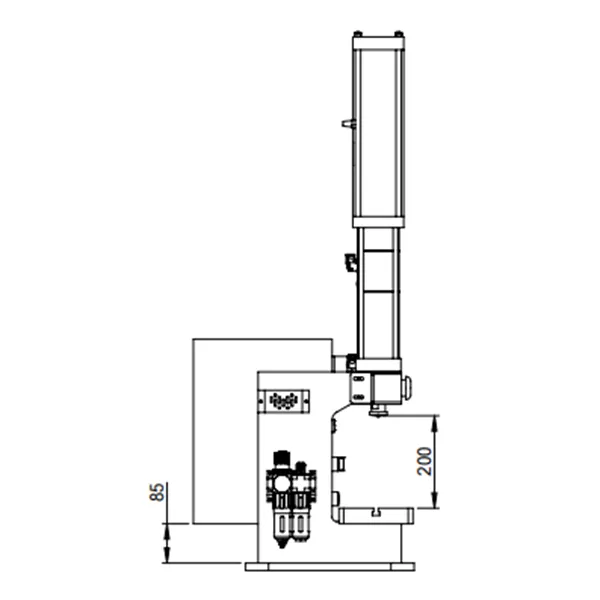

Dimensions
| Model | Max. Capacity | A | B | C | D | E | H | T-slot | ||
| kN | T | |||||||||
| CEB | 4 | 38.2 | 3.82 | 500 | 450 | 220 | 160 | 100 | 300 | 12 |
System Configuration

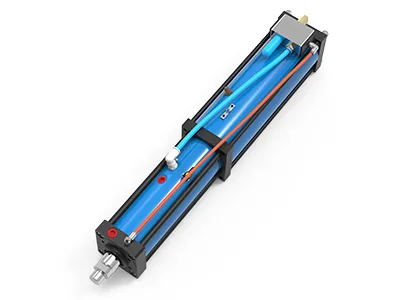

Pneumohydraulic Cylinder

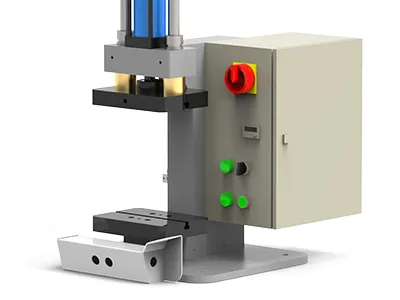

CEB Press Frame

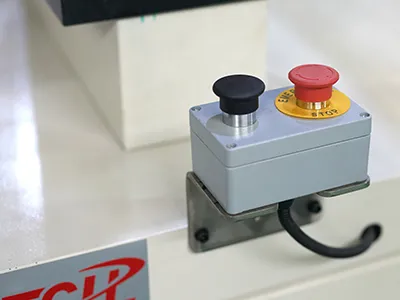

STE Safety Control System
Key Advantages
- Generates 2kN-2000kN of pressing force using only 2-8 bar compressed air, eliminating the need for complex hydraulic power units.
- Pressing force is infinitely adjustable within the specified range.
- Unique "Adaptive" Pressing Technology: The power stroke is automatically triggered at any point within the total stroke upon contact with the workpiece.
- No stroke adjustment is required when changing tools or workpieces. During the power stroke, the force automatically adapts to load changes, optimizing the assembly process.
Applicable Processes
Forming

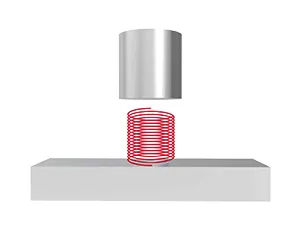

Testing

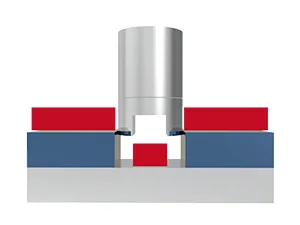

Stamping
Embossing

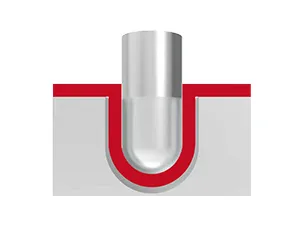

Drawing

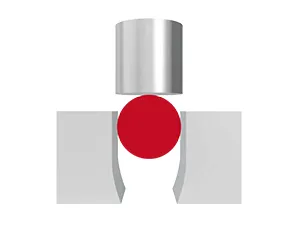

Sealing

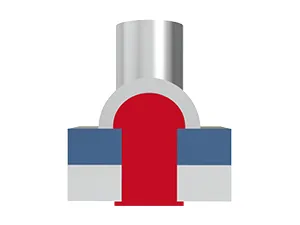

Riveting
Cutting

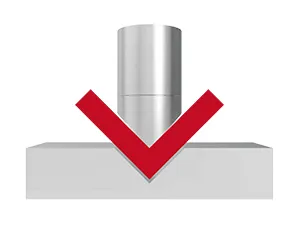

Bending
Compression

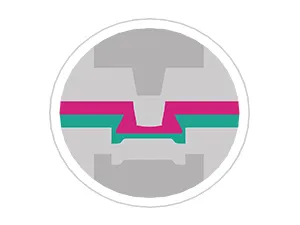

Clinching
Press fitting
