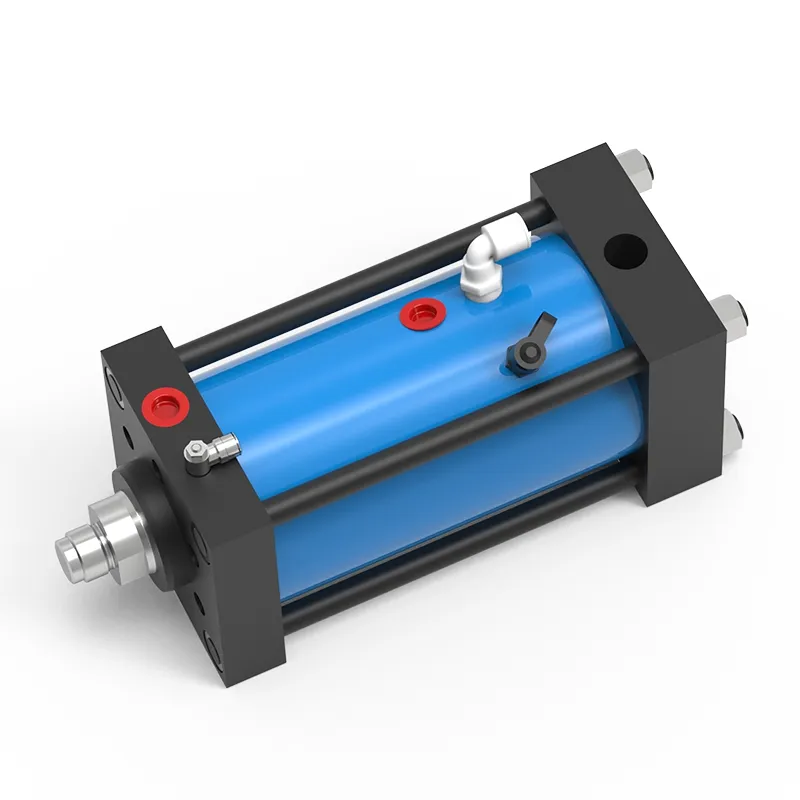

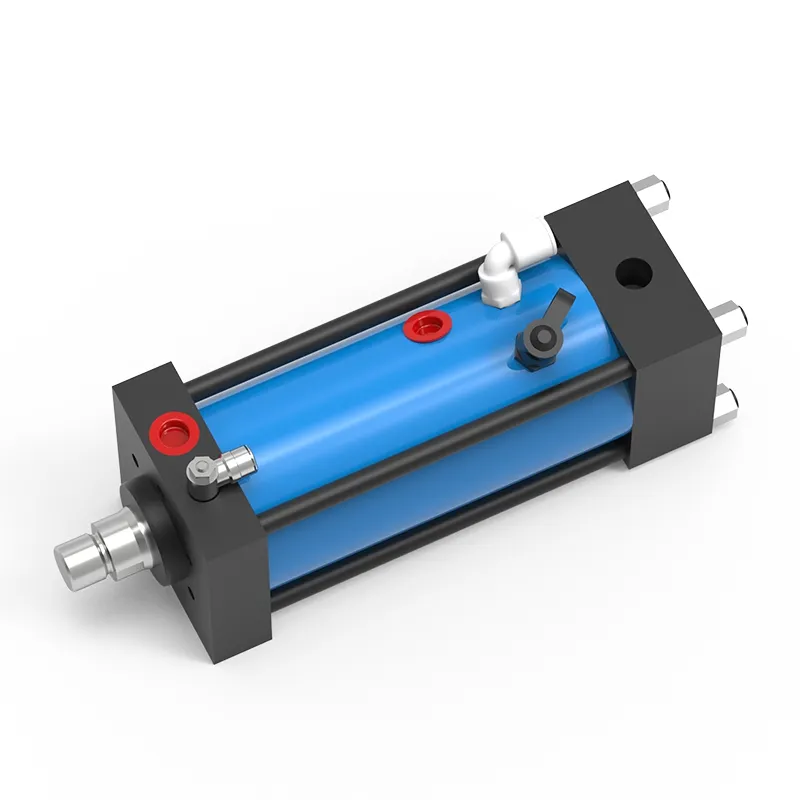

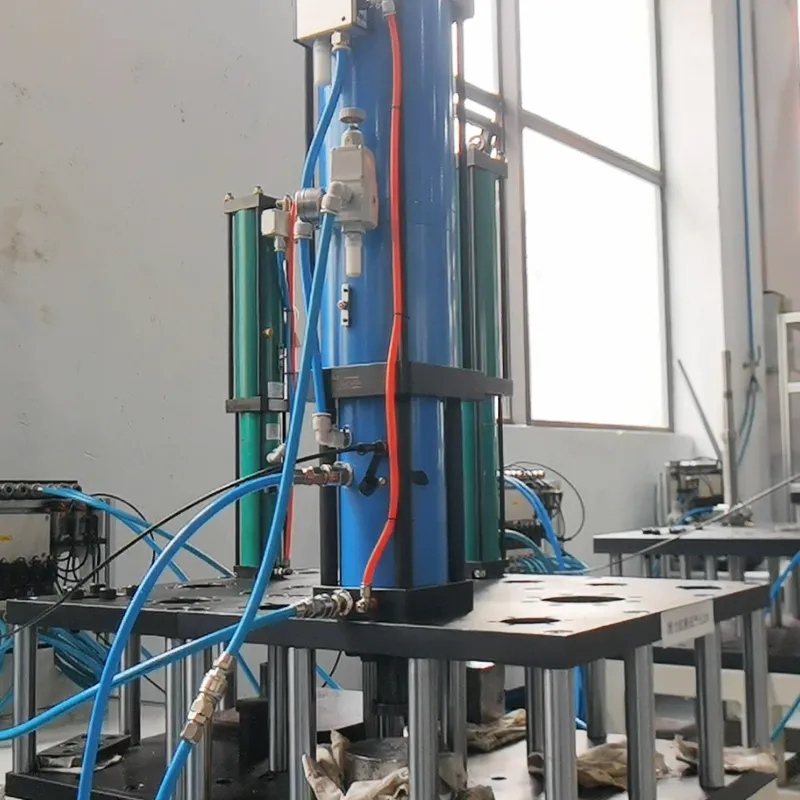

Pneumohydraulic Drive (with Separate Working Cylinder), AT Series

Operating pressure ≤6bar
Pressing force 2-2000kN
Force stroke 5-52mm
Total stroke 100/200/250mm

The pneumohydraulic drive combines the advantages of compressed air and hydraulic systems, integrating the high-speed motion of the separate pneumatic cylinder with the high intensity of hydraulic systems. It enables pneumatic rapid advance, pneumatic rapid return, and utilizes the intensifier to provide high-pressure oil to achieve work. The control logic is consistent with standard pneumohydraulic cylinders.

Leave a Message

Operating Parameters

Model	Pressing Force Output (kN, at 400 bar input oil pressure )	Approach Stroke Force (kg, at 6 bar air pressure)	Return Stroke Force (kg, at 6 bar air pressure)	Oil Consumption per 1mm Stroke (V, CC)	Approach Stroke Oil Loss (V1, cCC, per 50mm)	Hose Expansion/Loss (V2, CC, per 100mm of hose length)	Hydraulic Hose Specification
AT01 Series	13.00	95.00	105.00	0.31	0.55	0.40	3/8" Two-Layer Wire Spiral High-Pressure Hose
AT02 Series	21.00	150.00	170.00	0.49	0.70	0.70	3/8" Two-Layer Wire Spiral High-Pressure Hose
AT04 Series	42.00	240.00	260.00	1.02	1.65	0.70	1/2" Four-Layer Wire Spiral High-Pressure Hose
AT08 Series	81.00	350.00	370.00	1.95	3.50	0.90	1/2" Four-Layer Wire Spiral High-Pressure Hose
AT15 Series	158.00	500.00	700.00	3.85	5.00	2.00	1/2" Four-Layer Wire Spiral High-Pressure Hose
AT20 Series	200.00	580.00	780.00	5.67	10.00	2.00	3/4" Four-Layer Wire Spiral High-Pressure Hose
AT30 Series	320.00	730.00	1000.00	7.85	15.50	2.00	3/4" Four-Layer Wire Spiral High-Pressure Hose
AT50 Series	498.00	1150.00	1700.00	12.27	18.50	3.10	1" Four-Layer Wire Spiral High-Pressure Hose
AT100 Series	1030.00	2355.00	3780.00	25.45	36.50	3.10	1" Four-Layer Wire Spiral High-Pressure Hose

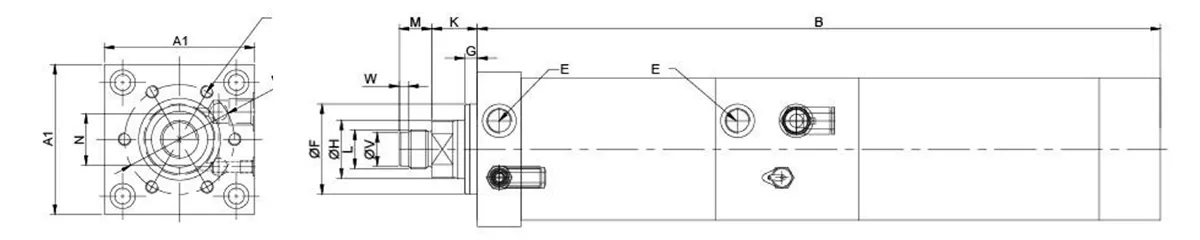

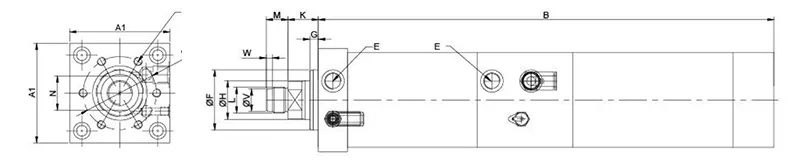

Cylinder Stroke Parameters

Model	A1	B	C	D	E	F (f7)	G	H	K	L	M	N	X
AT01-100	66	320	6-M6×12	40	G1/8	30	10	16	24	M12×1.5	15	13	G3/8
AT02-100	78	339	6-M08×15	54	G1/4	40	10	20	26	M16×1.5	15	17	G1/2
AT04-100	98	355	6-M08×18	64	G3/8	50	10	30	29	M22×2	20	24	G1/2
AT08-100	120	391	6-M10×20	88	G1/2	70	10	45	35	M30×2	25	36	G3/4
AT15-100	145	413	6-M16×25	100	G1/2	75	15	50	36	M30×2	25	41	G3/4
AT20-100	166	427	6-M20×30	115	G1/2	85	18	56	52	M39×2	35	46	G3/4
AT30-100	190	446	6-M20×30	132	G3/4	100	18	63	47	M39×2	35	55	G1
AT50-100	190	471	8-M20×35	150	G3/4	115	25	63	56	M42×2	40	55	G1-1/4
AT100-100	315	556	12-M24×45	200	G1	150	20	100	60	M64×2	60	85	G1-1/4

Configuration Diagram

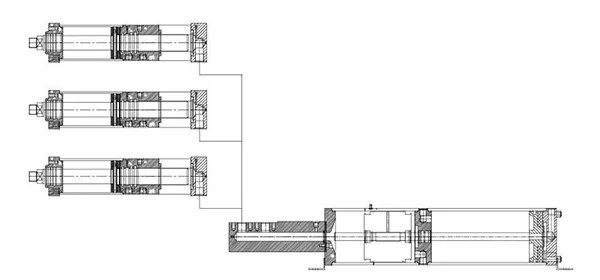

AT Cylinder (Multiple Units) + MPSxxx-xxx Intensifier

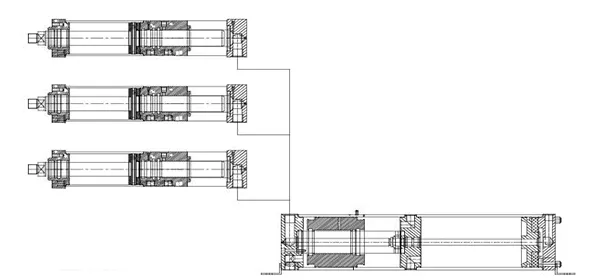

AT Cylinder (Multiple Units) + TMPSxxx-xxx Intensifier

Cylinder Selection Example

Requirement: 2 cylinders with 60kN force, 130mm stroke, 12mm pressure stroke, side-exit oil port, synchronous action, oil pipe length 1200mm, with an intensifier option.
The AT08 cylinder outputs 81 kN at a maximum oil pressure of 400 bar, which meets the 60kN requirement. The corresponding intensifier must be the MPS series, which converts 6 bar air pressure into a maximum 400 bar hydraulic output.
A1 (Cylinder Stroke): Since the required stroke is 130mm, a standard 150mm stroke is selected.
Total volume for 2 cylinders = 2×150 ×1.96CC (V)×1.5 (Safety storage coefficient) = 882CC
A2 (Volume Loss Due to Hose Length) = (1200/50)×3.5CC (V1) = 84CC
A0 (Total Required Low-Pressure Oil): 882CC + 84CC = 966CC.
B1 (Cylinder Consumption): Volume for 2 cylinders = 2×12×1.96CC (V) = 47.04 CC.
B2 (Volume Loss Due to High-Pressure Hose Expansion) = 2×(1200/100)×0.9 CC (V2) = 21.6 CC.
B0 (Total Required High-Pressure Oil): 47.04 CC + 21.6 CC = 68.64 CC.
Final Selection Result
Working Cylinders: AT08-150-02 (Quantity: 2 units)
Drive Intensifier: MPS160.60.100 (Quantity: 1 unit)
High-Pressure Hoses: VH04-1200 (Quantity: 2 units)

Applicable Processes

Forming
Testing
Stamping
Embossing
Drawing
Sealing
Riveting
Cutting
Bending
Compression
Clinching
Press fitting
