Customized Clinching Equipment

SIMITCH has been deeply engaged in industrial joining for nearly 20 years, focusing on non-standard customization. We offer custom clinching equipment with pressing forces from 2kN to 2000kN, covering from special-shaped tooling to integrated production lines. Validated by our internal process laboratories and trusted by renowned brands like BYD and Gree, we solve your toughest challenges regarding complex materials and limited installation space. We guarantee high cycle efficiency, full quality traceability, and provide a 24-month warranty on core components. At SIMITCH, we go beyond standard clinching equipment to tailored industrial joining solutions for your specific production needs.

Customized Solutions for Industries

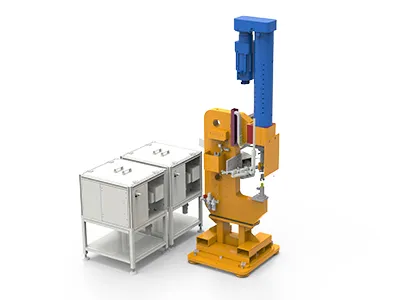

New Energy Vehicle (NEV) Component Riveting Stations

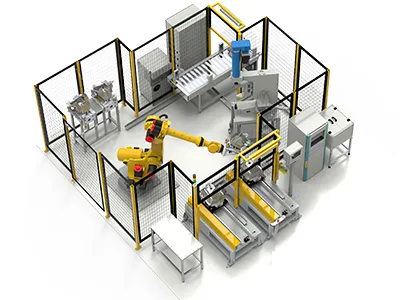

Intelligent Riveting Equipment for New Energy Vehicle (NEV) Shock Tower

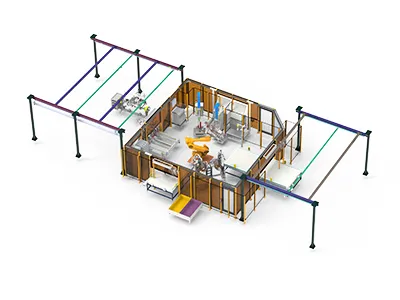

New Energy Vehicle (NEV) Rear Floor Panel Riveting Units

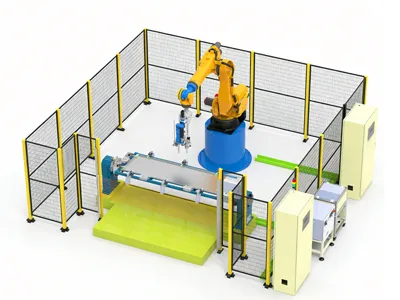

New Energy Vehicle (NEV) Battery Tray Riveting Units

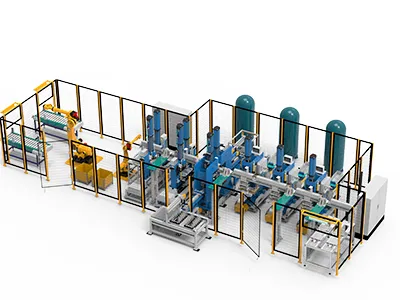

Washing Machine Outer Chassis Riveting Machine

Washing Machine Cabinet Riveting Machine

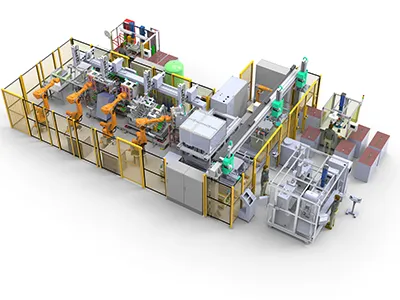

Dishwasher Tank Riveting Machine

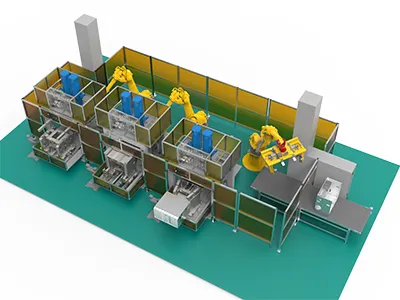

Integrated Stove Cabinet Riveting Machine

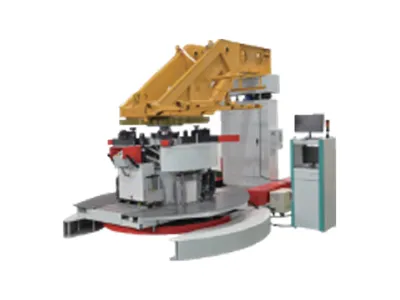

Rotary Table Servo Tightening Machines

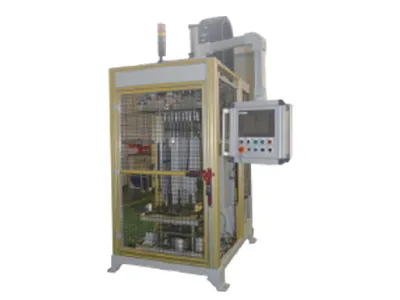

Cylinder Head UC1169 Tightening Equipment

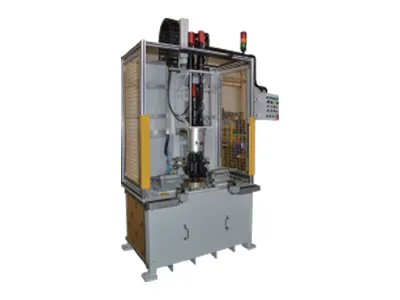

4-Axis Semi-Automatic Tightening Stations

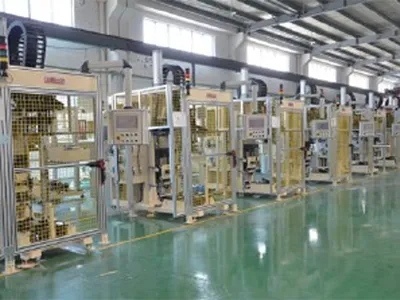

H3 Engine Cylinder Head Tightening

Cases

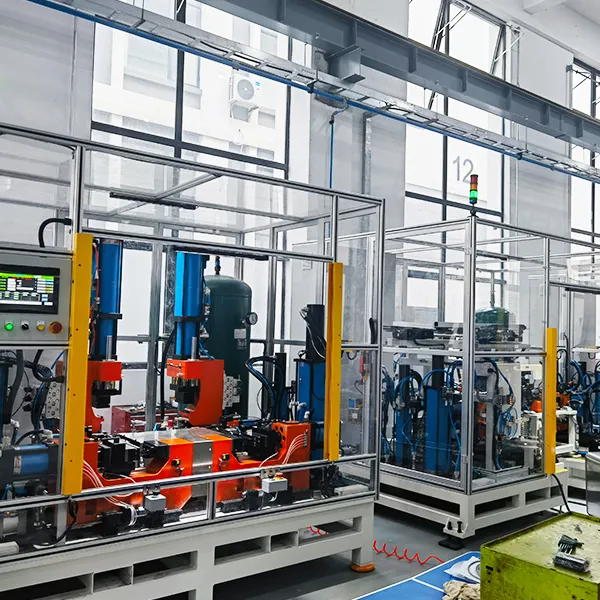

Automated Clinching Equipment for Washing Machine

Inner Drum (Wash Tub) Clinching: Primary Application

Target Components: Securely joins the stainless steel drum sidewall to the rear backplate (spider mounting plate).
Technical Requirements: As the primary load-bearing junction, this connection must provide exceptional mechanical strength, fatigue resistance, and corrosion protection. It is engineered to withstand intense centrifugal forces and continuous vibration during high-speed spin cycles.

Outer Casing and Structural Component Clinching

Target Components: Fastens the casing’s back, top, and front panels, and integrates internal components such as dampers, counterweights, and motor brackets.
Technical Requirements: While the force requirements are less intensive than the inner drum, the process demands high stability and reliability to ensure the casing remains structurally sound over long-term use.

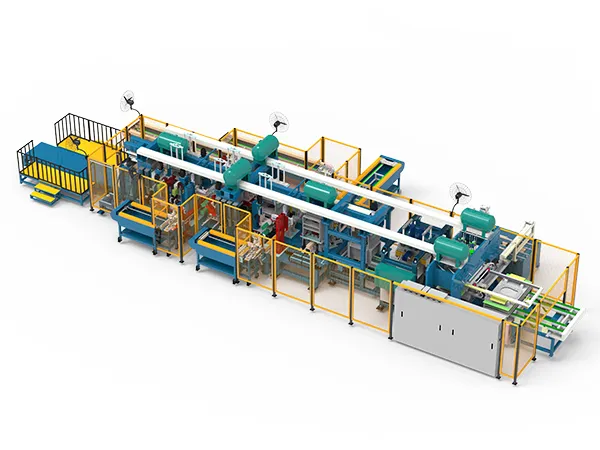

Automated Assembly and Clinching Line for Front-Load Washing Machine Casings

This automated production line is engineered for the automated assembly and clinching of washing machine casings, integrating sheet metal components such as side panels, back panels, and base plates. It serves as a critical link in achieving large-scale, high-quality automated manufacturing for the appliance industry.

Video

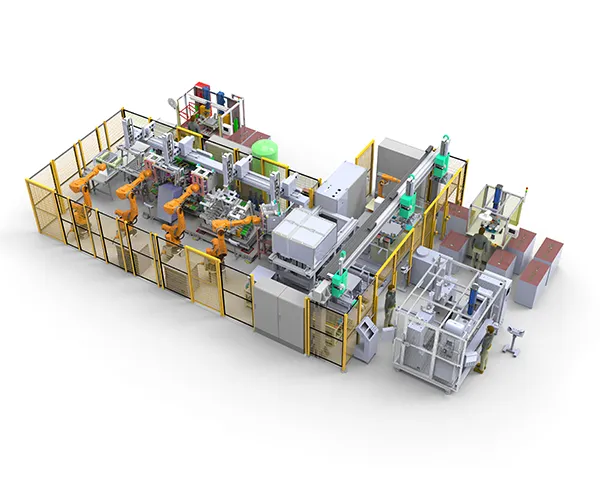

Automated Clinching Equipment for Dishwasher Tank

Core Applications

Inner Tank Clinching (Primary Application): While dishwasher tanks are typically formed by welding rolled stainless steel, components such as reinforcement stiffeners, bracket mounts, and spray arm bushings are fixed via clinching. This process prevents the thermal deformation and weld-point corrosion often associated with traditional welding.
Door Assembly Clinching: Used to secure internal reinforcements, bracketry, and hinge mounting seats within the door structure.
Structural Component Clinching: Facilitates the fastening of internal basket guide-rail supports, chassis base components, and mounting feet.

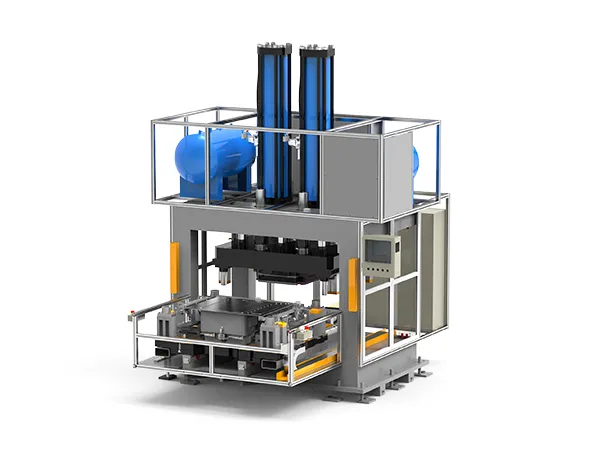

Automated Clinching Equipment for Integrated Stove

The integrated stove clinching equipment is a specialized automation system engineered for the professional assembly requirements of the integrated kitchen appliance industry. Designed as a superior alternative to traditional welding or screw fastening, it utilizes rivet-less clinching technology (also known as self-piercing or pressure joining) to rapidly and securely join various metal components, including stove panels, smoke collection chambers, main cabinets, and backplates.

Power Type: 20-100T
Pneumohydraulic: Throat Depth
Capacity: 300-800mm

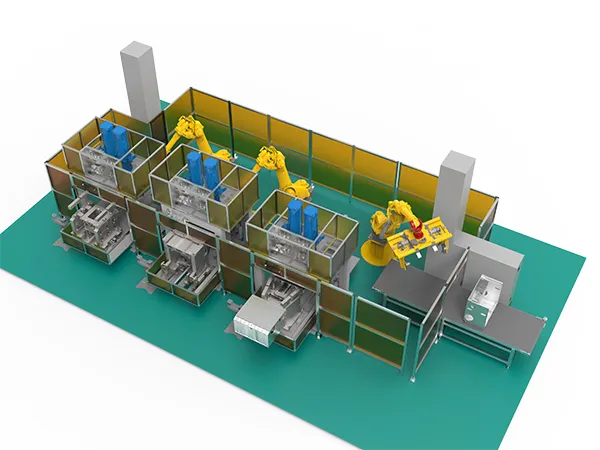

Automated Assembly and Clinching Line for Integrated Stove Casings

This production line was specifically engineered and manufactured for the high-end kitchen appliance brand, Marssenger. It is designed to automatically complete the assembly and clinching of the integrated stove’s core casing components, including the smoke collection chamber, air ducts, and internal brackets.

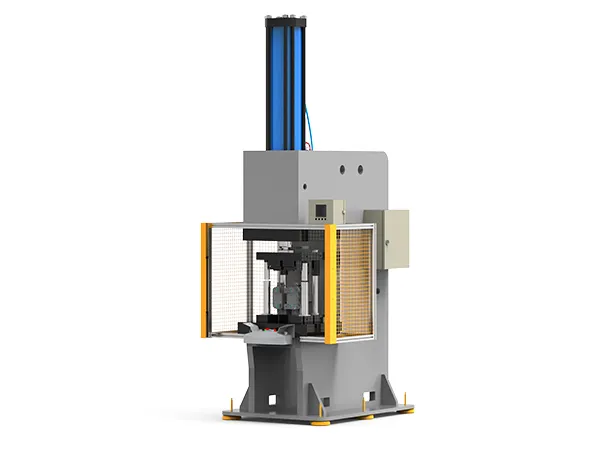

Automated Clinching Equipment for Airbag Module

The airbag module clinching equipment is a specialized system designed for the high-precision, high-reliability assembly of airbag components (such as gas generators and cover plates) onto steering wheels or airbag housing modules.

Video

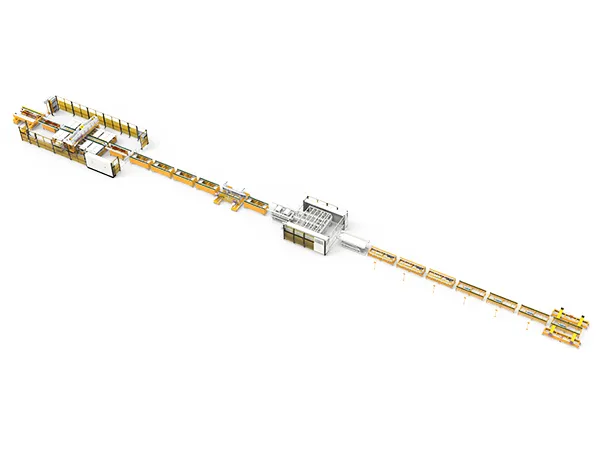

Intelligent Lockbolt Assembly Line for Elevator Platform

This intelligent elevator platform clinching line is a professional, high-end automated production system custom-engineered for Hitachi Elevator. It is specifically designed for the high-precision automated assembly of elevator car bottom frames.

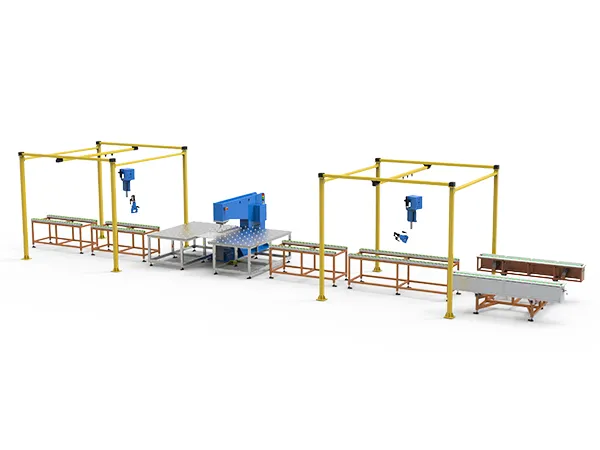

Semi-Auto Clinching Line for Elevator Car Top

The semi-auto clinching line for elevator car tops is a station-based production line designed for the assembly of elevator car top frames. This clinching line utilizes a semi-automated workflow where the core processes are guided by manual operation, supported by integrated equipment for precision positioning and assembly assistance.

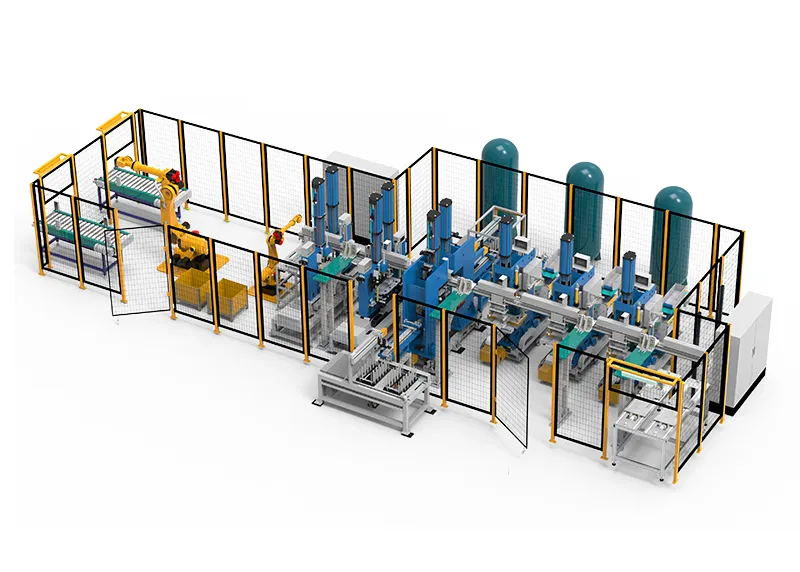

Automated Clinching Line for Air Conditioner Base Pan

The automated air conditioner base pan clinching line, engineered for Gree Electric, is an intelligent production system designed for the fully automated assembly and clinching of outdoor air conditioning unit base pan components.
