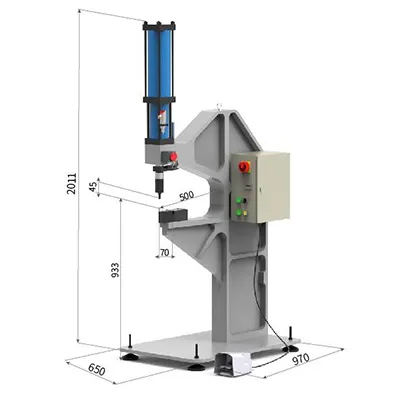

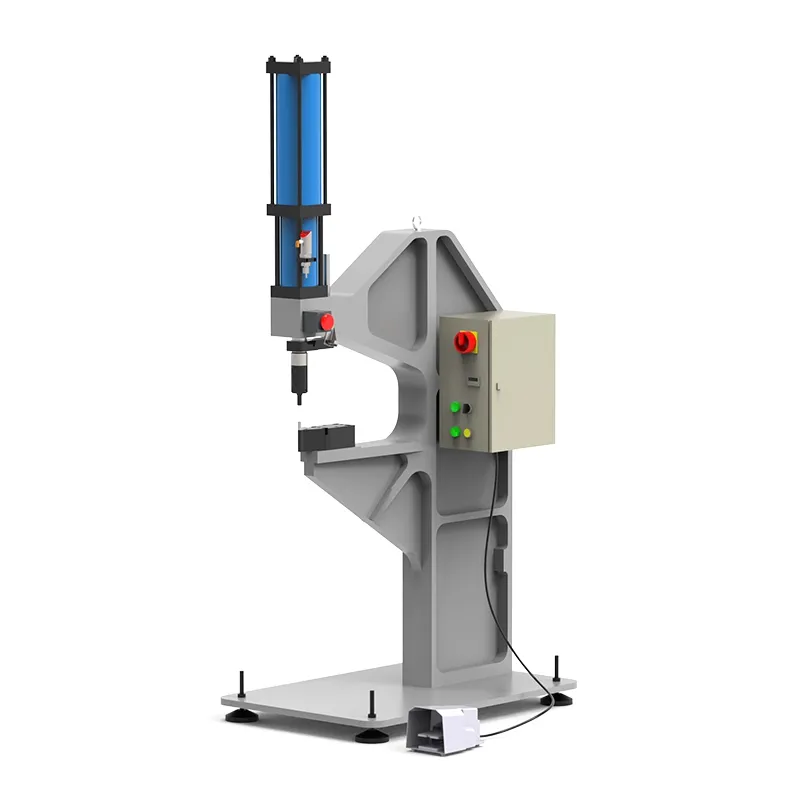

Clinching Press (8-Ton C-Frame Floor Press)

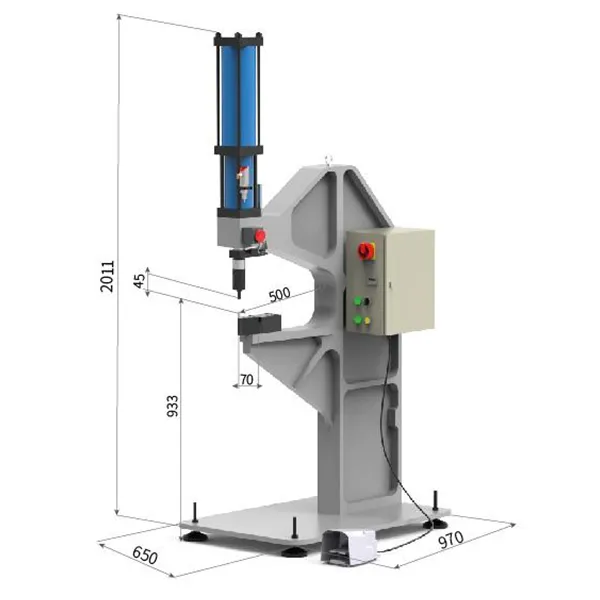

- Pressing Force 78kN
- Throat Depth 500mm
- Daylight 45mm
The CEC08 Series is a versatile C-frame clinching press engineered for precision press-fitting and joining across diverse industries, including automotive, home appliances, HVAC, sheet metal, electrical, elevators, and furniture hardware. Featuring a stable, one-piece cast iron design with an extra-deep throat, the CEC series is specifically optimized for applications requiring long, high-precision strokes.

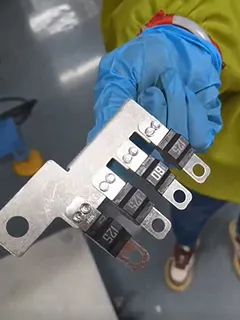

This clinching press excels in rivet-less clinching for thin sheet metal and the precision assembly of small-to-medium components. Key applications includes deep-throat joining for sheet metal brackets, cabinets, and enclosures in the automotive and appliance sectors; Quantitative press-fitting of bearings, bushings, sleeves, and self-clinching nuts.
| Model CEC08-01 | Max. Capacity | Throat Depth (mm) | Daylight (mm) | ||
| kN | T | ||||
| CEC | 8 | 78 | 8 | 500 | 45 |

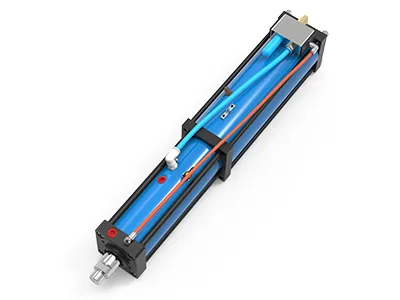

Pneumohydraulic Cylinder

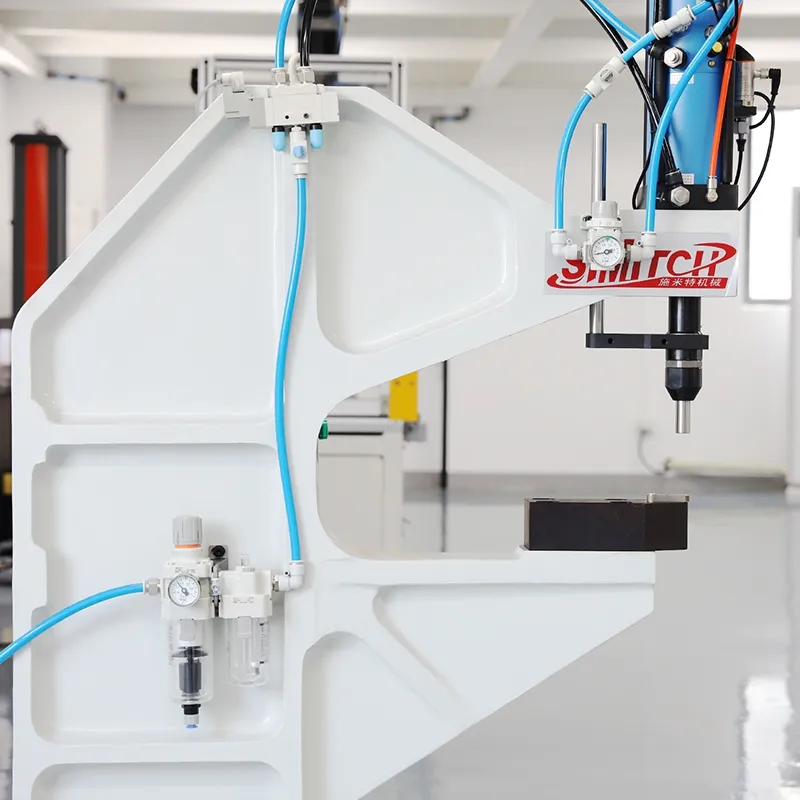

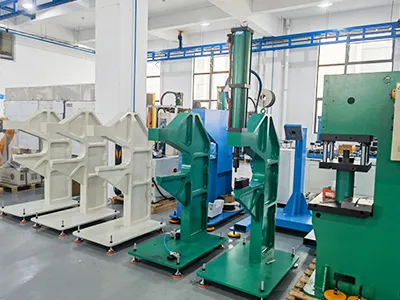

CEC Press Frame

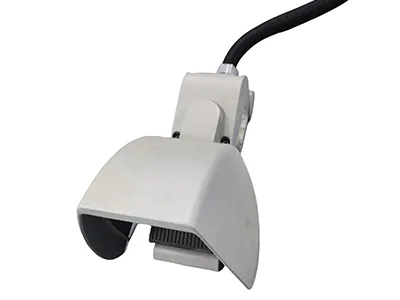

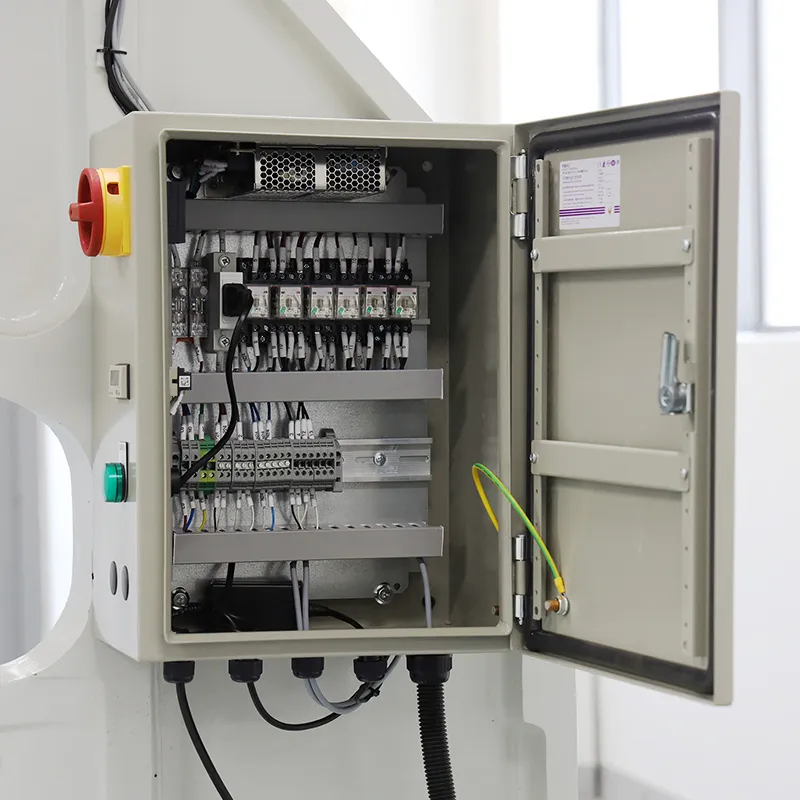

STE Safety Control System
- Simplified Power Drive: Utilizes an advanced pneumohydraulic cylinder as the primary power actuator.
- Generates 2kN-2000kN of pressing force using only 2-8 bar compressed air, eliminating the need for complex hydraulic power units.
- Pressing force is infinitely adjustable within the specified range.
- Unique "Adaptive" Pressing Technology: The power stroke is automatically triggered at any point within the total stroke upon contact with the workpiece.
- No stroke adjustment is required when changing tools or workpieces. During the power stroke, the force automatically adapts to load changes, optimizing the assembly process.
Forming
Testing
Stamping
Embossing
Drawing
Sealing
Riveting
Cutting
Bending
Compression

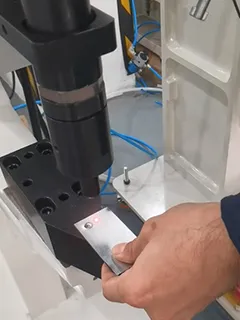

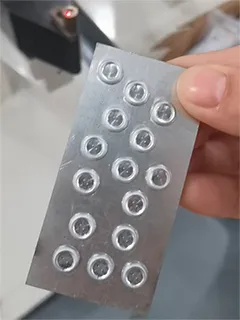

Clinching
Press fitting
