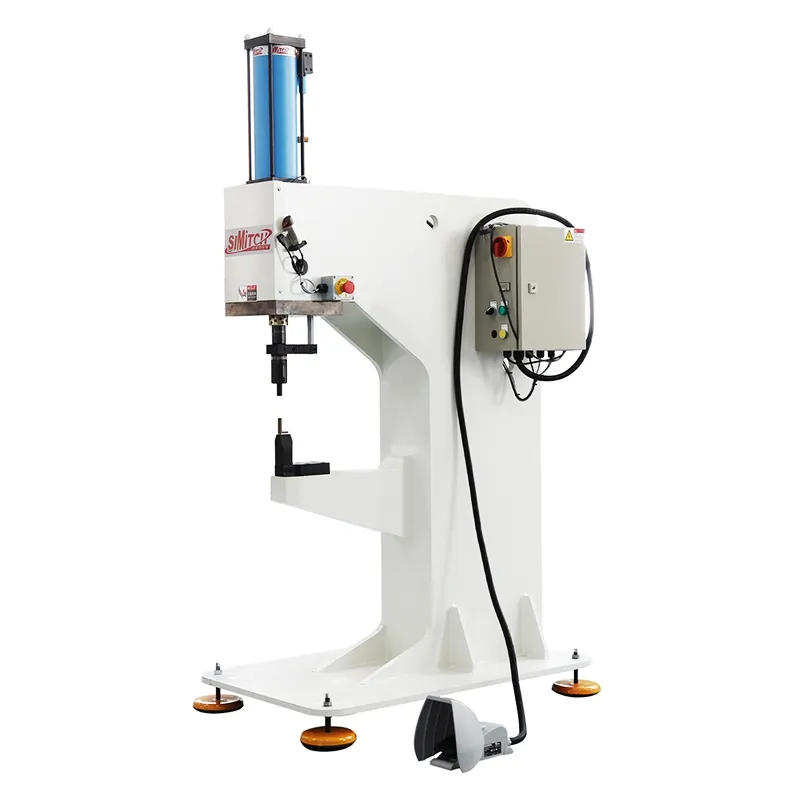

Clinching Press (15-Ton C-Frame Floor Press)
- Pressing Force 147kN
- Throat Depth 500mm
- Daylight 45mm
The versatile CEU clinching press is a robust floor press solution engineered for high-precision press-fitting and clinching across a wide spectrum of industrial sectors. It is extensively utilized in industries such as automotive, home appliances, HVAC (refrigeration), sheet metal fabrication, electrical, elevators, and furniture hardware. Equipped with a 500mm throat depth, features a stable, monoblock cast iron design that ensures maximum rigidity and minimal deflection under load. The press supports customization requirements.
Dimensions
| Model | Max. Capacity | A | B | C | D | E | ||
| kN | T | |||||||
| CEU | 15 | 147 | 14.7 | 1045 | 800 | 1100 | 500 | 60 |
System Configuration

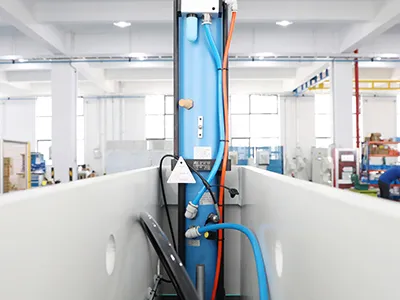

Pneumohydraulic Cylinder

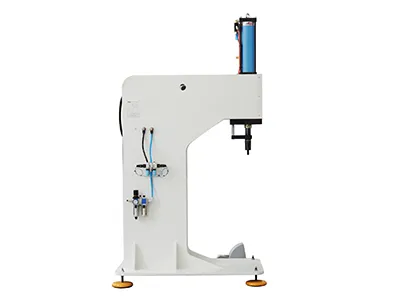

CEU C-Frame Press Body

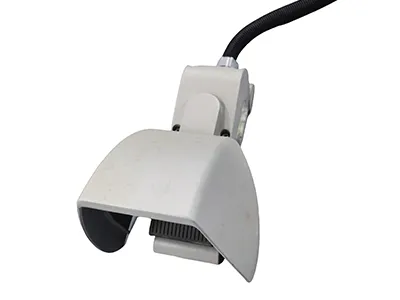

STE Safety Control System
Key Advantages
- Simplified Power Drive: Utilizes an advanced pneumohydraulic cylinder as the primary power actuator.
- Generates 2kN-2000kN of pressing force using only 2-8 bar compressed air, eliminating the need for complex hydraulic power units.
- Pressing force is infinitely adjustable within the specified range.
- Unique "Adaptive" Pressing Technology: The power stroke is automatically triggered at any point within the total stroke upon contact with the workpiece.
Applicable Processes
Forming
Testing
Stamping
Embossing
Drawing
Sealing
Riveting
Cutting
Bending
Compression
Clinching
Press fitting
