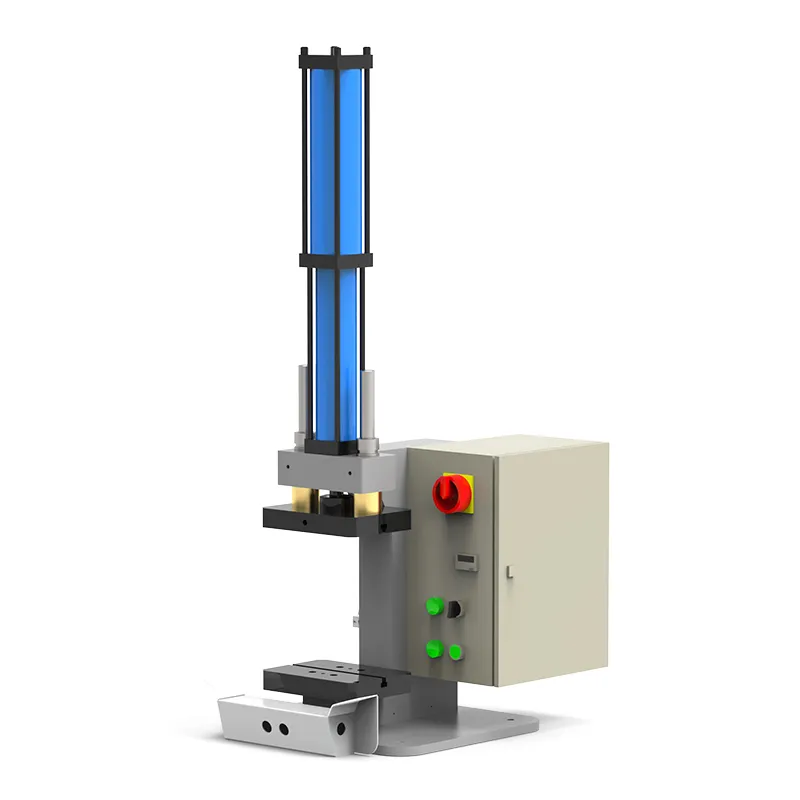

Clinching Press (8-Ton C-Frame Bench Press)
- Clamping Force 76kN
- Force Stroke 5-52mm
- Daylight 200mm
The CEB Series clinching bench press is a versatile clinching and pressing solution engineered for industrial applications requiring high precision. It serves a diverse global clientele across sectors including automotive, home appliances, HVAC (refrigeration), sheet metal fabrication, electrical, elevators, and furniture hardware. Its highly adaptable design allows it to function as a stationary bench-top press, a portable clinching unit, or as a standalone cell within a fully automated production line.

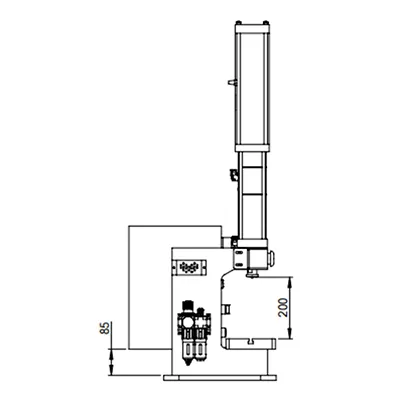

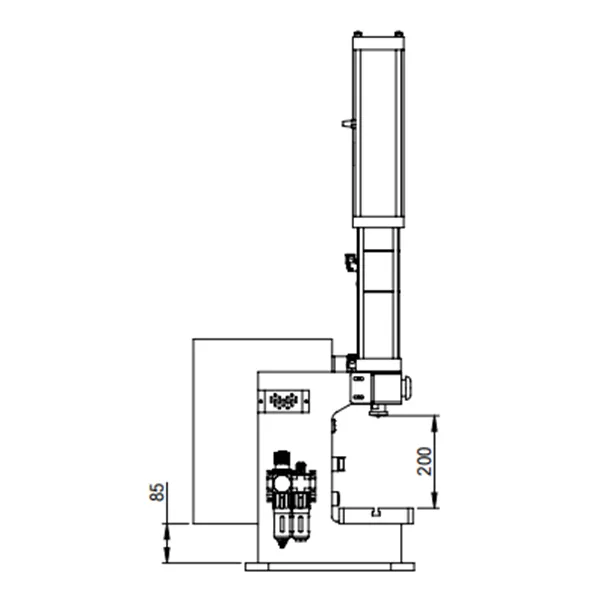

Dimensions
| Model | Max. Capacity | A | B | C | D | E | H | T-slot | ||
| kN | T | |||||||||
| CEB | 8 | 78 | 7.8 | 450 | 480 | 250 | 160 | 120 | 320 | 12 |
System Configuration

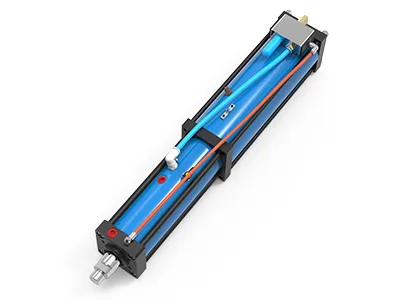

Pneumohydraulic Cylinder

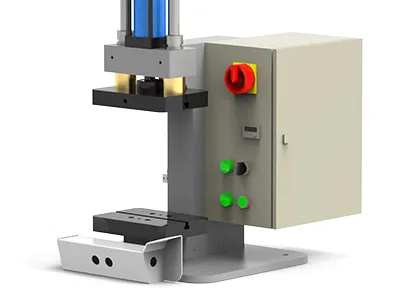

CEB Press Frame

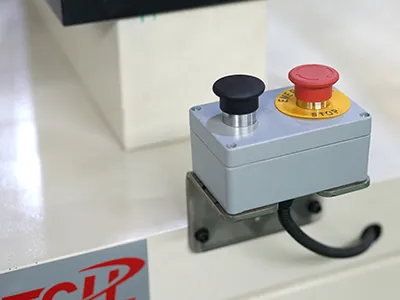

STE Safety Control System
Key Advantages
- Simplified Power Drive: Utilizes an advanced pneumohydraulic cylinder as the primary power actuator.
- Generates 2kN-2000kN of pressing force using only 2-8 bar compressed air, eliminating the need for complex hydraulic power units.
- Pressing force is infinitely adjustable within the specified range.
- Unique "Adaptive" Pressing Technology: The power stroke is automatically triggered at any point within the total stroke upon contact with the workpiece.
- No stroke adjustment is required when changing tools or workpieces. During the power stroke, the force automatically adapts to load changes, optimizing the assembly process.
Applicable Processes
Forming
Testing
Stamping
Embossing
Drawing
Sealing
Riveting
Cutting
Bending
Compression
Clinching
Press fitting
