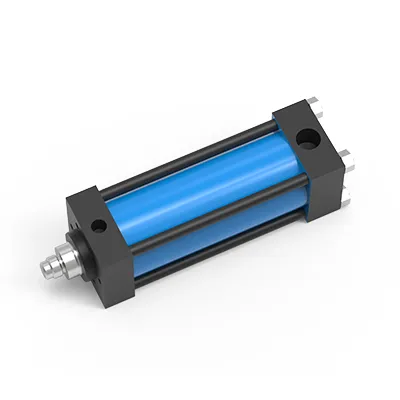

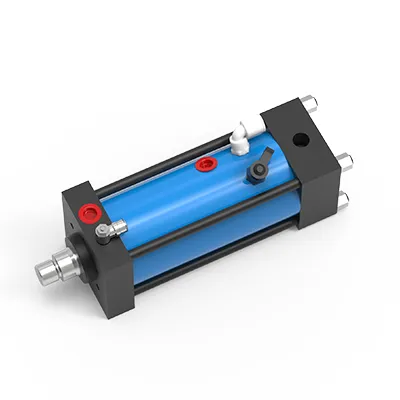

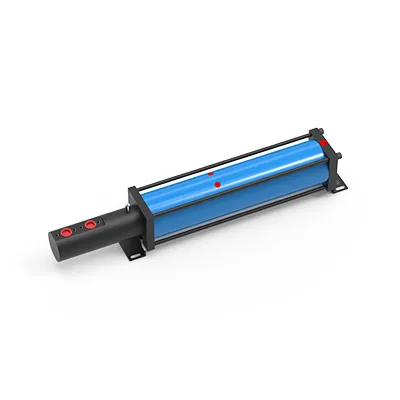

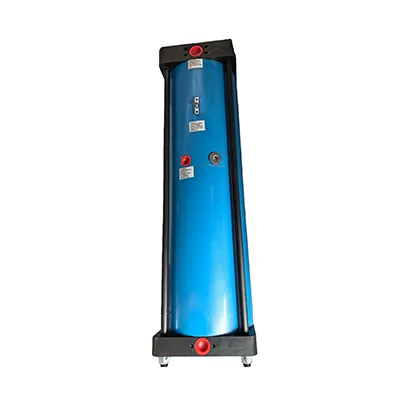

The pneumohydraulic drive functions as a fully integrated drive system. Its modular configurations and specialized accessories ensure seamless adaptation to a wide range of application scenarios. Custom-engineered designs such as configurations optimized for welding enable these cylinders to deliver high precision and reliability, meeting the diverse demands of customers.

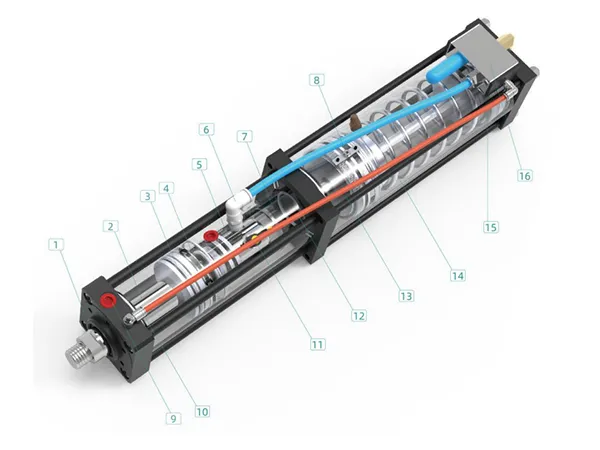

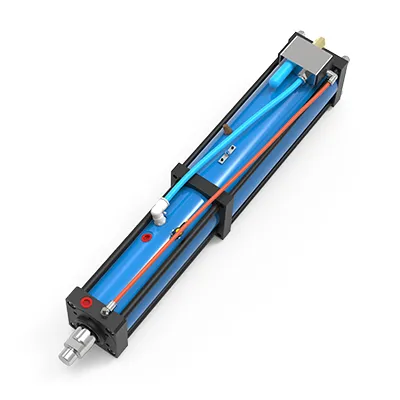

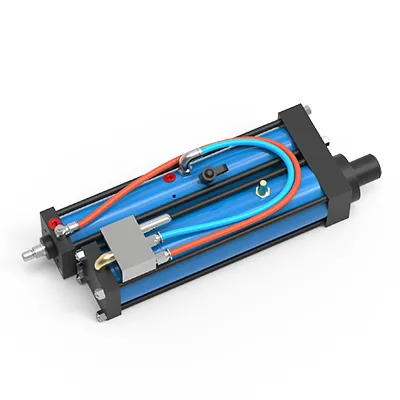

Cylinder Structure and Features
- High-precision guide bushing and locating pilots
- Dual-supported high-strength steel working piston rod
- Sealing elements with patented seal grooves for long-term lubrication retention and extended service life
- End-of-stroke cushioning pad that reduces return stroke noise
- Dual-plunger oil cylinder sealing system for complete separation of air and oil with venting
- Integrated internal air circuit design
- Bypass release with integrated overflow buffering
- Oil reservoir exhaust port
- Standardized pneumatic interfaces
- Force-stroke velocity regulating valve (Type X)
- Integrated test interface
- Integrated pneumatic circuit
- Pressurized sealed oil reservoir
- Double-ended supported spring (or gas spring)
- Boost piston cushioning pad
- Integrated pneumohydraulic intensification control valve
Advantages of Pneumohydraulic Drive

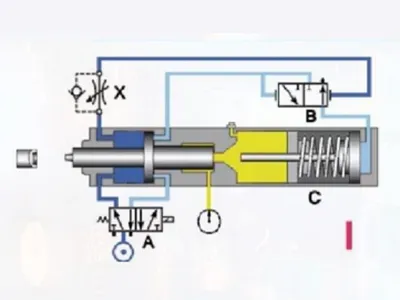

Initial state: Supports 360° installation at any angle.

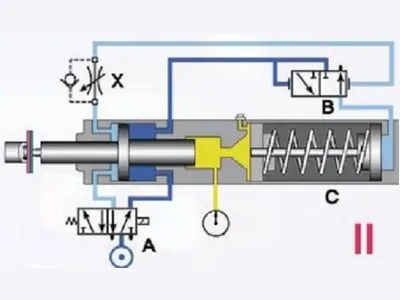

Fast approach stroke: Driven by the approach cylinder to bring the tool into contact with the workpiece.

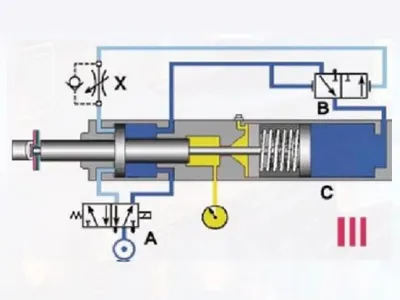

Power stroke: Driven by the rear intensifier to complete pressing or forming operations.

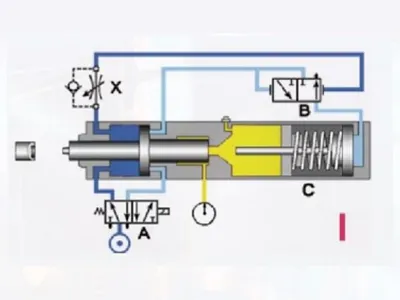

Fast return stroke: Pneumatic retraction of the approach cylinder and spring-assisted reset of the intensifier.
Typical Industrial Applications

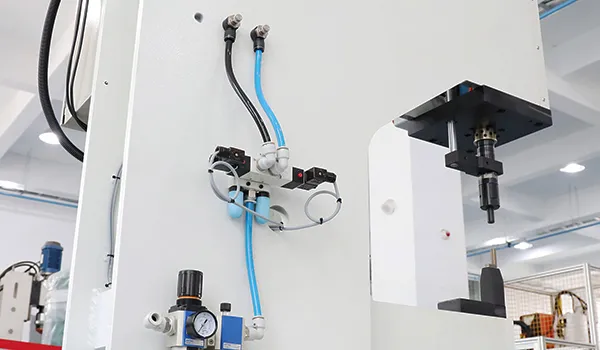

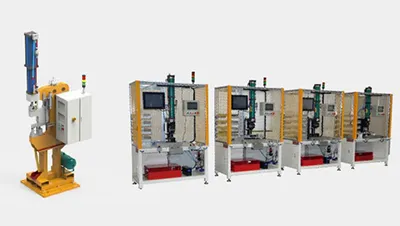

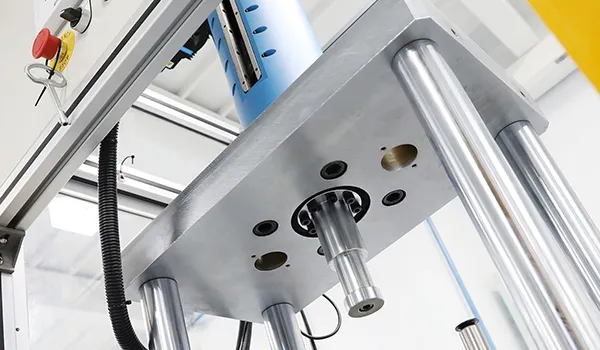

Automatic press-riveting equipment

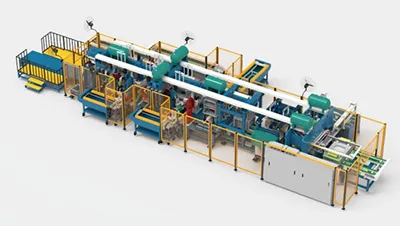

Automated production lines

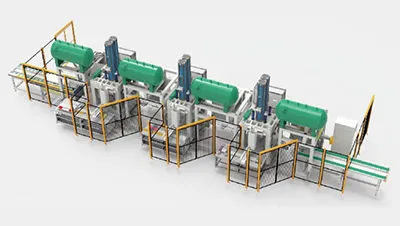

Automated production lines

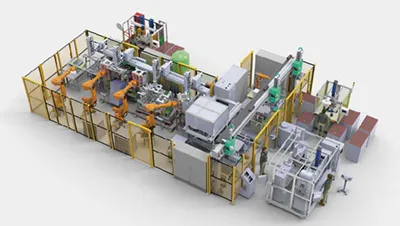

Automated production lines
