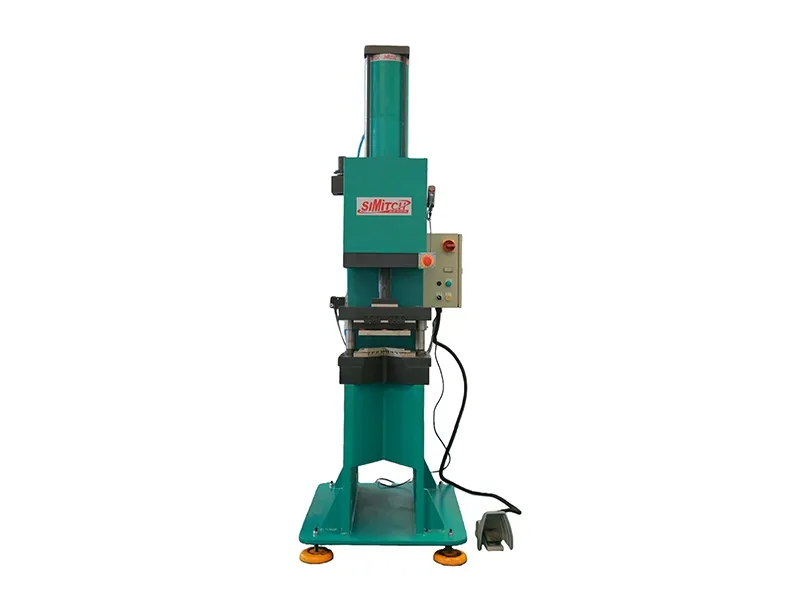

C-frame Press, 78 - 990 KN
- Pressing Force 78-990kN
- Power Stroke 5-52mm
- Total Stroke 100/200/250mm

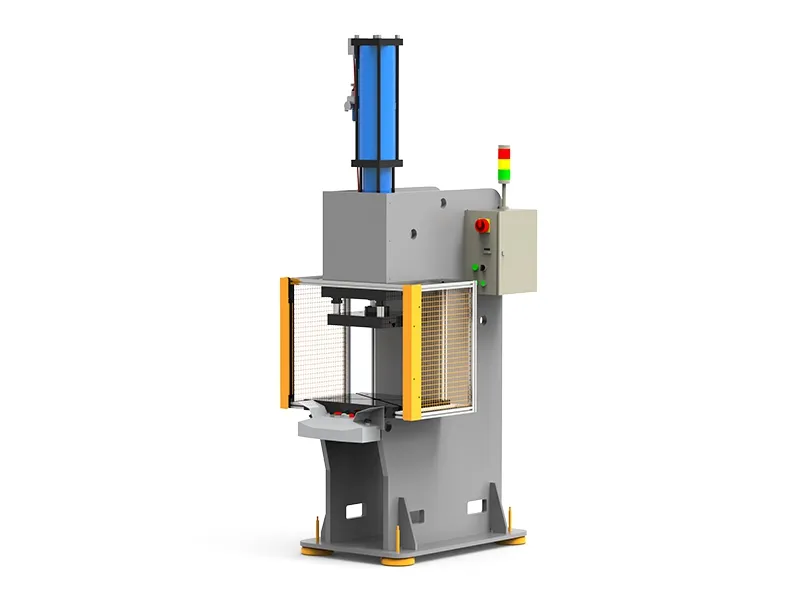

The C-frame presses are engineered with a focus on structural stability and intelligent control. They provide reliable, powerful force for sheet metal stamping and component assembly. With a robust floor-standing design and precision force application, this press serves as a high-performance foundation for efficient manufacturing.
Key Features
Press dimension and parameters can be tailored to specific customer product requirements, maximum capacity available up to 100 tons.
Drive System
Powered by SIMITCH BS/BT Series pneumohydraulic cylinders.

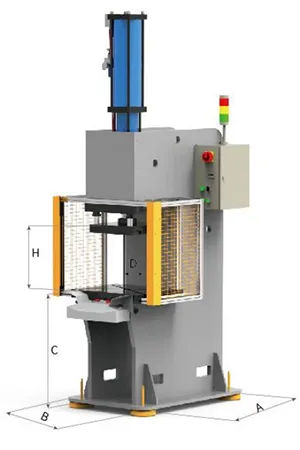

Dimensions
| Model | Max. Capacity | A | B | C | D | H | T-Slot | ||
| kN | T | ||||||||
| PC | 8 | 78 | 7.8 | 900 | 600 | 750 | 205 | 280 | 12 |
| 15 | 134 | 13.4 | 900 | 660 | 750 | 225 | 250 | 14 | |
| 20 | 184 | 18.4 | 1200 | 750 | 750 | 255 | 400 | 18 | |
| 30 | 283.6 | 28.36 | 1300 | 800 | 750 | 255 | 450 | 18 | |
| 50 | 477.6 | 47.76 | 1400 | 1000 | 750 | 255 | 550 | 18 | |
| 75 | 735.7 | 73.57 | 1500 | 1200 | 750 | 255 | 550 | 18 | |
| 100 | 990 | 99 | 1600 | 1200 | 750 | 255 | 550 | 18 | |
System Configuration
- Pneumohydraulic Cylinder
- C-Frame Machine Frame
- STE Safety Control System
Typical Applications
- Punching and embossing of sheet metal.
- Press-fitting of bearings and bushings.
- Clinching and riveting of electrical components.
- Powder metallurgy forming.
