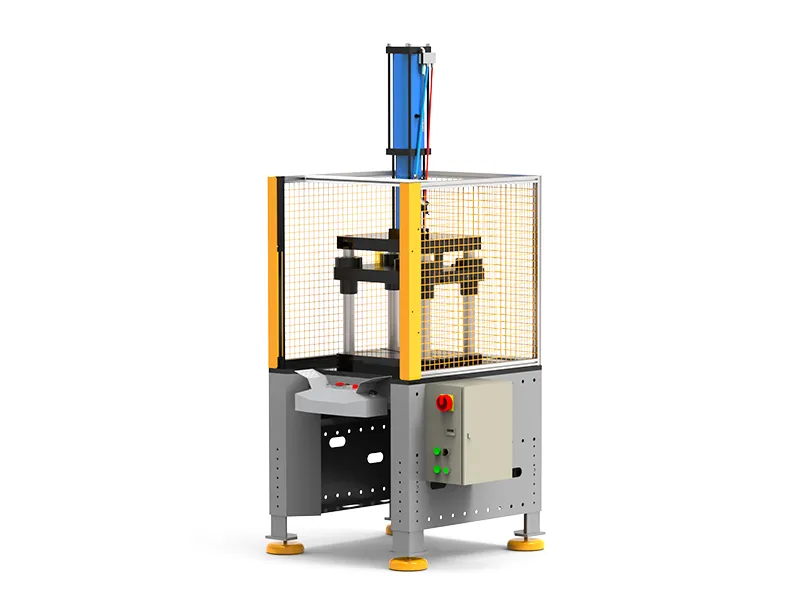

4-column Press, 38 - 735 KN
The 4-column press is a versatile pneumohydraulic press built around a high-rigidity four-column structure. It is designed for a wide range of metal forming processes. The equipment dimensions can be customized to meet specific customer requirements, and the press is powered by the BS/BT pneumohydraulic cylinders.

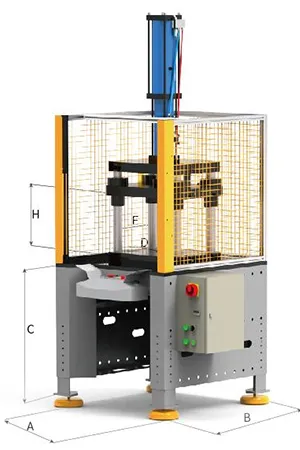

Dimensions
| Model | Max. Capacity | A | B | C | D | E | H | T-Slot | ||
| kN | T | |||||||||
| MA | 4 | 38.2 | 3.82 | 790 | 810 | 775 | 200 | 160 | 280 | 10 |
| 8 | 78 | 7.8 | 790 | 810 | 775 | 310 | 200 | 350 | 12 | |
| 15 | 134 | 13.4 | 790 | 810 | 775 | 350 | 250 | 380 | 14 | |
| 20 | 184 | 18.4 | 790 | 810 | 775 | 360 | 260 | 400 | 18 | |
| 30 | 283.6 | 28.36 | 790 | 810 | 775 | 360 | 260 | 400 | 18 | |
| 50 | 477.6 | 47.76 | 1000 | 810 | 775 | 400 | 260 | 550 | 18 | |
| 75 | 735.7 | 73.57 | 1000 | 810 | 775 | 500 | 280 | 350 | 18 | |
Key Advantages
- Structural Stability: The four-column guiding system ensures smooth operation and high precision.
- Hydraulic Drive Performance: Adjustable pressure and speed profiles provide high adaptability.
- Modular Safety: Equipped with standard safety devices and flexible functional expansion options.
Main Applications
Widely used for drawing, press-fitting, punching, and bending processes in automotive hardware, electrical components, and other manufacturing industries. Known for its high reliability and versatility, this press is a standard choice for fundamental stamping production.
